Flexible semi-automatic filling system for 200L drums and 1000L IBCs. Features tool-free changeover, ±0.1% gravimetric accuracy, EHEDG/FDA compliance, and 30 units/hour throughput.

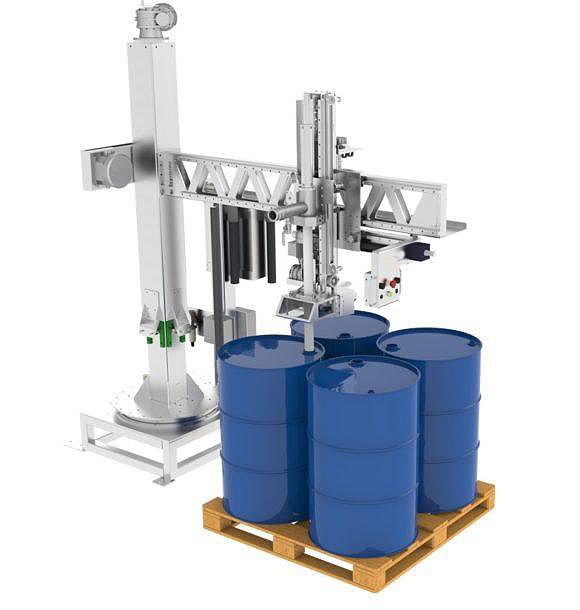

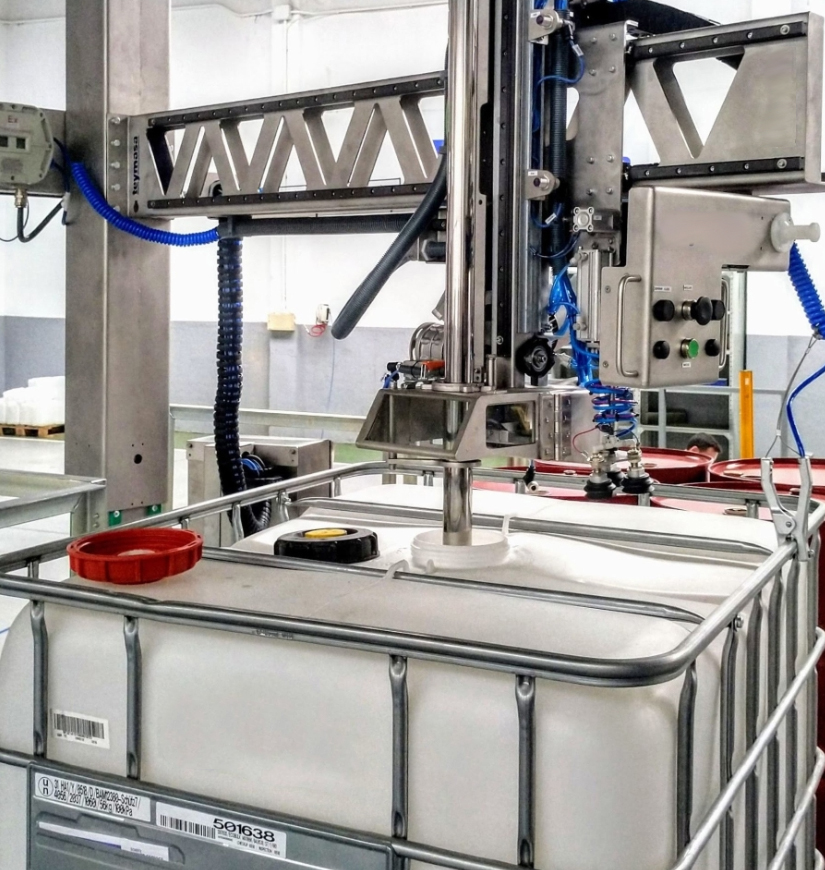

Semi-Automatic Multi-Container Filling System for Drums & IBCs
Dual-Format Flexibility ? 30 Units/Hr ? ±0.1% Accuracy ? EHEDG/FDA/ATEX Tri-Compliance ? Tool-Free Changeover
| Parameter | FF-3100 (Standard) | FF-3200X (ATEX) | FF-3300P (cGMP) |
|---|---|---|---|
| Container Compatibility | Drums (200L) ? IBCs (1000L) Materials: Steel/Plastic/Composite Lid: Bolt Ring ? Camlock ? Tri-Clamp | UN-Certified | USP Containers |
| Throughput | 30 Units/Hr (20 Drums + 10 IBCs) | 28 Units/Hr | 25 Units/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 10-500,000 cP | 50-300,000 cP | 5-1,000,000 cP |
| Filling Technology | Coriolis Mass Flow + Gear Pump Flow Rate: 300L/min Density Accuracy: ±0.05% | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Clamping System | FlexiClamp? Adaptive Arms: ? Force Control: 500-2,000N ? Auto-Size Detection ? ±1mm Positioning ? 3s Container Switch | ATEX Grippers | Cleanroom Design |
| Material Contact | 316L EP (Ra<0.8μm) | Hastelloy C276 | PFA-Lined Path |
| Changeover Time | <45s (Tool-Free) | <60s | <30s |
| Safety Systems | TripleShield?: 1. Emergency Stop (SIL-2) 2. Anti-Spill Drip Tray 3. Static Dissipation (<0.1kV) | Explosion Venting | VHP Compatibility |
| Control Interface | 10" Touch HMI: ? Recipe Storage: 100+ ? Multi-Language Support ? Predictive Maintenance Alerts ? IoT Connectivity | ATEX Panel | 21 CFR Part 11 |
| Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 110/117 |
Performance Validation:
| Container | Size | Clamping Force | Positioning Accuracy |
|---|---|---|---|
| Steel Drum | ?585mm × 880mm | 800N | ±0.8mm |
| Plastic IBC | 1000×1200×1150mm | 1,500N | ±1.2mm |
| Composite Tote | 800×1200×1000mm | 1,200N | ±1.0mm |
| Component | Technology | Performance |
|---|---|---|
| Coriolis Meter | Temperature-Compensated | ±0.03% Density Accuracy |
| Load Cells | Overload Protection (150% FS) | ±0.05% Accuracy |
| PID Control | Adaptive Algorithm | ±0.1% Fill Consistency |
復制1. Manual Container Loading → 2. Auto-Clamping → 3. N? Purging (O?<0.5%) → 4. Precision Filling (±0.1%) → 5. Vacuum Drip Control → 6. Torque-Sealing (50-200 N·m) → 7. Weight Verification → 8. Labeling
Cycle Time:
Drums: 120 seconds
IBCs: 180 seconds
Versatility & Safety
復制? Dual-Container Mastery: | **Feature**| **Drums (200L)** | **IBCs (1000L)** | |-------------------------|-------------------|-------------------| | **Clamping Force**| 500-800N| 1,200-2,000N | | **Flow Rate** | 250L/min| 300L/min | | **Sealing Torque**| 50-100 N·m| 100-200 N·m| ? Zero-Spill Architecture: 1. -0.5bar Vacuum Hood 2. Coanda Adhesion Nozzle 3. Drip Tray with Auto-Drain ? Industrial-Grade Reliability: - Hardox 450 Frame (450 HB) - IP65 Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 22 ? EHEDG EL Class I ? FDA 21 CFR 110 (cGMP)
"After implementing FF-3100:
Output: 18 → 30 Units/Hr (+67%)
Spill Reduction: ↓98% (Vacuum Hood)
Changeover Time: 15min → 45s
ROI Period: 5 months"
Product details
After-sales Service Provided | Video technical support, Online support | Place of Origin | Shanghai, China |
Filling Accuracy | 99.9% | Brand Name | GLZON |
Mechinery Test Report | Provided | Others | Products can be customized according to needs |
Main features
1. From 20L;
2. Filling weight control;
3. Automatic filling;
4. Automatic filling;
5. Adjustable height of the nozzle.
