Roller Conveyor
Guangzhi’s Roller Conveyor: Heavy-duty transport up to 5,000 kg/m, 80 m/min speed. ATEX/CE certified. 90% labor reduction. IoT-enabled for smart factories.
- Brand： glzon
- Model： GZM-50V

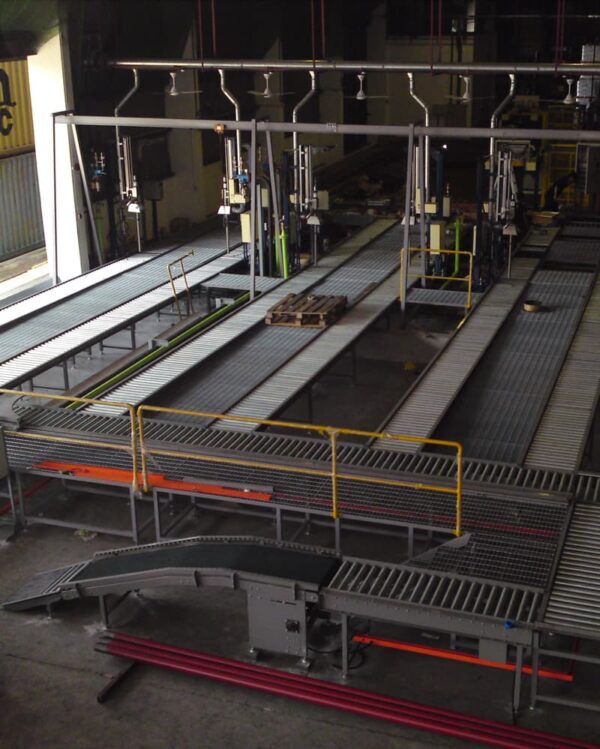

Product Introduction: Heavy-Duty Roller Conveyor System
Robust, Flexible Transport for Pallets, Drums & Industrial Loads
Shanghai Guangzhi Automation’s Roller Conveyor System delivers unmatched durability and efficiency for transporting heavy unit loads up to 5,000 kg/m. Engineered with motorized rollers (MDR), zero-pressure accumulation, and IoT-ready controls, it achieves 0.2–80 m/min speed with 24/7 reliability – reducing manual handling by 90% while seamlessly integrating with palletizers, AS/RS, and robotic cells.
Core Technologies & Configurations
1. Motorized Drive Rollers (MDR)
Intelligent Zoning: Independent 24V DC rollers enable accumulation without product damage.
Energy Efficiency: 60% less power vs. traditional chain conveyors (regenerative braking).
2. Heavy-Duty Frame Design
Load Capacity: 500–5,000 kg/m (adjustable roller pitch).
Corrosion Resistance: Galvanized or stainless steel (IP66/IP69K).
3. Smart Control Ecosystem
PLC integration (Siemens/Rockwell) with EtherNet/IP.
RFID tracking + photoelectric sensors for real-time load monitoring.
Technical Specifications
| Parameter | Standard Model | Heavy-Duty Model |
|---|---|---|
| Max. Load Capacity | 2,500 kg/m | 5,000 kg/m |
| Roller Diameter | ?50/60/89 mm | ?114/152 mm |
| Speed Range | 0.5–45 m/min | 0.2–80 m/min |
| Frame Width | 400–2,000 mm | 500–2,500 mm |
| Roller Pitch | 75–150 mm | 100–200 mm |
| Power Supply | 24V DC/480V AC | 480V AC + hydraulic lift |
| Incline/Decline | 0–10° | 0–15° (cleated rollers) |
| Noise Level | ≤72 dB(A) | ≤78 dB(A) |
| Compliance | CE, ISO 340, ANSI B20.1 | ATEX, AS4084 |
Industry-Specific Solutions
| Industry | Application | Special Features |
|---|---|---|
| Warehousing | Pallet transport to AS/RS | High-speed merges (100+ pallets/hr) |
| Automotive | Engine/transmission handling | ESD-safe rollers; 5,000 kg capacity |
| Food & Pharma | Washdown-compatible tote moving | 316L SS rollers; CIP-ready |
| Chemicals | Drum/IBC transfer (ATEX Zone 1) | Explosion-proof motors |
Operational Advantages
| Feature | Impact |
|---|---|
| Zero Product Damage | Accumulation without contact (pressure-free) |
| Energy Savings | 60% reduction vs. chain-driven systems |
| Space Optimization | 30% narrower than belt conveyors |
| 24/7 Durability | 100,000+ hour roller life (IP66 sealed) |
| ROI Period | 6–12 months (vs. manual handling) |
Modular Integration Options
Curves: 30°/45°/90° arcs (?600–2,000 mm)
Transfers: Chain-driven lifts for multi-level lines
Accessories:
Retractable stoppers
Diverters with pneumatic arms
Pallet centering guides
Safety & Compliance
Standard Protection:
Emergency stop ropes (ISO 13849-1 PLd)
Roller guards + skirtboards
Hazardous Environments:
ATEX-certified rollers (Zone 1/21)
Static grounding (<10? Ω)
