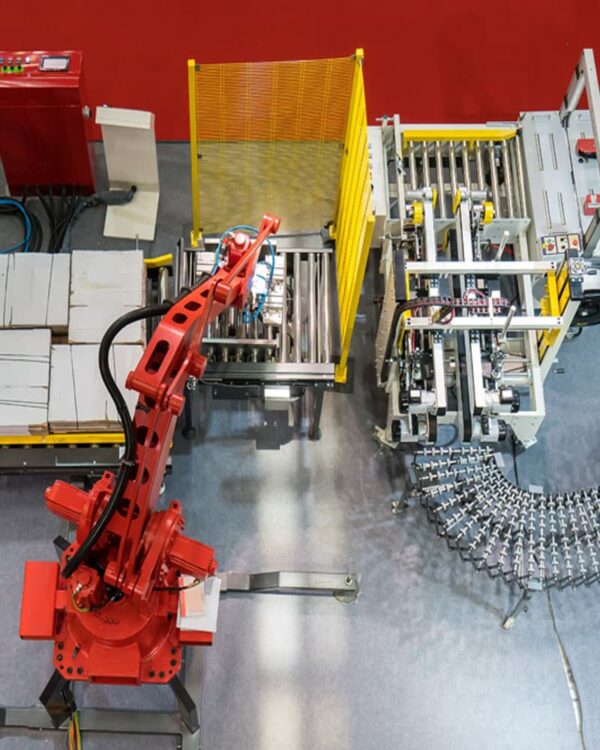

Robotic Arm Drum/Pail/Carton Palletizer
Guangzhi’s Universal Robotic Palletizer: Automate drum, pail & carton stacking at 1,200+ units/hour. ±0.5mm accuracy. ATEX/CE/GMP certified. 85% labor savings.
- Brand： glzon
- Model： GZM_200L
Product Introduction: GZ-Universal Robotic Palletizer
One System, Infinite Flexibility: Precision Stacking for Drums, Pails & Cartons
Shanghai Guangzhi Automation’s GZ-Universal Robotic Palletizer redefines mixed-container logistics with AI-driven adaptability, handling 200L drums, 30L pails, and 25kg cartons at 25+ cycles/minute. Combining multi-functional EOAT, 3D vision intelligence, and plug-and-play changeovers, this system achieves ±0.5mm stacking accuracy while slashing labor costs by 85% – engineered for chemical, food, e-commerce, and pharmaceutical industries requiring ATEX, GMP, or ISO-certified automation.
Core Technologies & Features
| Technology | Drum Mode | Pail Mode | Carton Mode |
|---|---|---|---|
| AI Vision Guidance | LiDAR dent/deform detection | Handle orientation scanning | Mixed-SKU pattern recognition |
| Adaptive EOAT | 2,500kg magnetic claws | Vacuum cup array (?50–300mm) | Dual-gripper (clamp + vacuum) |
| Speed & Payload | 40 drums/hour | 60 pails/hour | 1,200 cartons/hour |
| Stacking Intelligence | UN 4G/M2 pyramid patterns | Interlocked layers | AI-optimized trailer loading |
| Changeover Time | <90 sec (tool-free) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Payload | 2,500 kg (drums) / 80 kg (pails) / 50 kg (cartons) |
| Positioning Accuracy | ±0.5 mm (all modes) |
| Reach Radius | 3,200 mm (6-axis robot) |
| Pallet Compatibility | EUR, CHEP, ISO pallets (800–1,200mm) |
| Power Supply | 480V/60Hz, 7.5 kW + 0.8 MPa air |
| Cycle Time | 8 sec (cartons) / 22 sec (drums) |
| Compliance | CE, ISO 10218-1, ATEX II 2G, FDA 21 CFR |
| Footprint (L×W×H) | 6,500 × 4,800 × 3,600 mm |
Industry-Specific Applications
Chemical Plants:
Flammable drum stacking (ATEX) + corrosive pail handling (Hastelloy grippers)
E-commerce Fulfillment:
Mixed SKU carton palletizing + returns processing
Food & Pharma:
GMP-compliant pail/carton stacking (IP69K washdown)
Automotive:
Oil pails & parts cartons on shared line
Operational Advantages vs. Manual Palletizing
| Metric | GZ-Universal System | Manual Operation |
|---|---|---|
| Containers/Hour | 1,200+ (carton mode) | 150–250 |
| Product Damage | 0.01% | 3–8% |
| Labor Cost | 1 operator (supervisory) | 6–8 workers |
| Stacking Density | 22% improvement | Inconsistent |
| ROI Period | 7–12 months | N/A |
Smart Control Ecosystem
Guangzhi SynergyOS?:
Auto-recognizes container type via barcode/vision
Cloud-based pattern library (100+ presets)
OEE dashboards: Uptime, mispick rates, energy use
Safety Integration:
360° LiDAR safety curtain (ISO 13849-1 PLd)
|ATEX option: Non-sparking components
Customization Options
EOAT Modules:
Explosion-proof drum claws (Zone 1)
|Sanitary pail grippers (FDA silicone)Carton clamp with force control
Environmental Kits:
Arctic operation (-40°C)
Salt-spray resistance (ISO 12944 C5M)
Automation Extensions:
AGV pallet transfer
|Vision-based quality inspection
