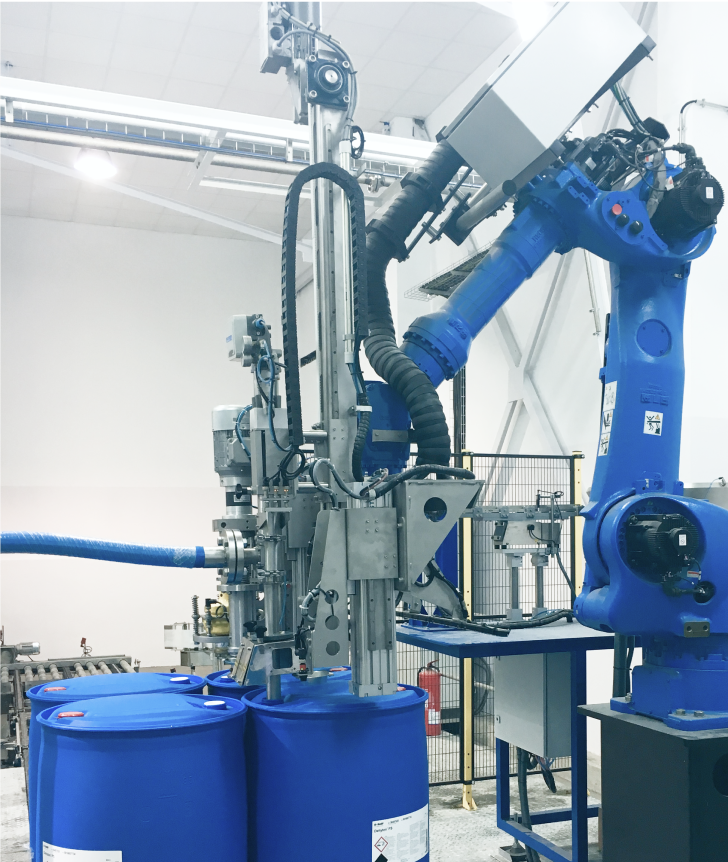

Robot filler
Shanghai Guangzhi’s robotic filler achieves ±0.1% accuracy for 1ml-1000L containers. 6-axis adaptive filling, CIP/SIP ready & FDA-compliant. 50% faster changeovers.
- Brand： glzon
- Model： GZM
Product Essence: Precision Unleashed Through Adaptive Robotics
Shanghai Guangzhi Automation’s Robotic Filling System redefines production agility – delivering ±0.1% volumetric accuracy across 1ml to 1000L containers with a single 6-axis robot. Integrating AI-driven viscosity adaptation, contactless filling technology, and GMP-compliant clean-in-place (CIP) systems, it achieves 50% faster changeovers while handling products from vaccines to viscous adhesives in food, pharma, and chemical operations.
Core Technological Superiority
1. Intelligent Motion Platform
| Technology | Performance |
|---|---|
| 6-Axis Collaborative Robot | ISO 9283 Path Accuracy: ±0.05mm |
| Adaptive End-Effectors | Tool-free change <90s (vials to IBCs) |
| Vision-Guided Filling | 3D container mapping (±0.1mm) |
| Non-Contact Filling | Electrostatic drop control (±1 droplet) |
2. Precision Fluid Handling
Smart Viscosity Control:
Real-time adjustment (1-500,000 cP)
Shear rate compensation (10-10,000 s?1)
Loss-Free Transfer:
Peristaltic/piston/solenoid hybrid system
Residual fluid ≤0.05ml per cycle
3. Sanitary Industrial Design
EHEDG EL Class I:
Ra ≤0.4μm 316L surfaces
Self-draining slopes (3°)
Zero Cross-Contamination:
Isolated CIP circuits per product line
Steam-in-place (SIP) validation
Technical Specifications
| Parameter | Pharma Model | Industrial Model |
|---|---|---|
| Filling Range | 1ml-20L (±0.1%) | 100ml-1000L (±0.15%) |
| Throughput | 3000 units/hour (10ml vials) | 60 IBCs/hour |
| Viscosity Range | 1-50,000 cP | 1-500,000 cP |
| Container Types | Vials/Bottles/Bags | Pails/Drum/IBCs |
| Changeover Time | <5 min (product/formula) | <10 min |
| Accuracy | ±0.1% (gravimetric) | ±0.15% (volumetric) |
| Power | 400V/50Hz, 6.8kW | 480V/60Hz, 11.2kW |
| Cleanability | SIP/CIP <15 min (ISO 13408) | Washdown IP69K |
| Footprint (L×W) | 3500×2800mm | 4200×3200mm |
Industry-Optimized Performance
Pharmaceuticals
Aseptic Filling: ISO Class 5 enclosure option
Vial/Pre-Syringe Handling: Delta robot sub-system
Data Integrity: 21 CFR Part 11 compliance
Food & Beverage
Variable Foam Control: Pulsed pressure filling
Allergen Management: Auto-purge sequencing
USDA/FDA Materials: EC1935/2004 compliant
Chemicals
ATEX Zone 1: Ex d IIC T4 pressurized cells
Solvent Recovery: 99.9% vapor capture
Smart Control Ecosystem
Centralized HMI with AI Copilot
Adaptive Recipe Engine:
500+ formula presets
Auto-viscosity learning
Real-Time Analytics:
OEE dashboard (uptime/yield/quality)
Predictive nozzle clog alerts
Blockchain Integration:
Batch genealogy from raw material to fill
Industry 4.0 Connectivity
OPC UA/MQTT to MES/SCADA
Digital twin synchronization
Remote firmware updates
Operational Impact
German Vaccine Producer Case:
Reduced changeover time from 45 to 4 minutes
Achieved ±0.08% fill accuracy for 2ml vials
ROI in 11 months via 30% yield increase
Global Compliance & Upgrades
Certifications:
FDA 21 CFR Part 210/211
EU GMP Annex 1
ISO 9001:2015
ATEX 2014/34/EU (Option)
Advanced Modules:
| Module | Function |
|---|---|
| In-Line Checkweigher | ±0.05g real-time feedback |
| Vision Inspection | Fill level/particulate detection |
| Nitrogen Sparging | Dissolved O? <0.1ppm |
| AR Maintenance | HoloLens-guided component replacement |
Support & Service
24/7 Global Robotics Network:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Servo fill modules
Vision cameras
CIP spray balls
Lifetime calibration support
