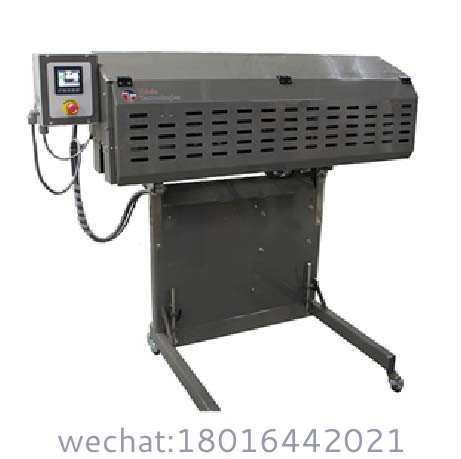

Model Pinch Bottom Bag Closer
Shanghai Guangzhi’s Pinch Bottom Bag Closer seals 50-100lb sacks at 80 bags/hour. Handles PP/paper/jute with triple-stitch lock. Dust-proof & ATEX options. CE/FDA compliant.
- Brand： glzon
- Model： GZM
Product Essence: Uncompromised Sack Integrity
Shanghai Guangzhi Automation’s Model Pinch Bottom Bag Closer delivers industrial-strength sealing for 50-100lb (25-50kg) pinch bottom sacks (PP woven, paper, jute). Engineered for cement, animal feed, and chemical powders, this rugged closer achieves 80 bags/hour with triple-thread lock stitching, eliminating spillage while withstanding harsh plant environments.
Core Technology Advantages
1. Heavy-Duty Stitching Precision
Triple-Lock Stitch: Class 300 thread (≥35 lb tensile strength)
Auto Tension Control: Maintains consistent stitch density across materials
Needle Guard System: Prevents breakage on thick seams (up to 8mm)
2. Dust Containment & Safety
IP65 Enclosure: Sealed motors/bearings resist abrasive dust ingress
ATEX Zone 21 Option: Explosion-proof servo drives (Ex IIB T4)
Vacuum Extraction Port: Captures 95% airborne particulates
3. Material Versatility
| Bag Type | Material Thickness | Stitch Speed |
|---|---|---|
| PP Woven | 0.2-0.8mm | 80 bags/hour |
| Kraft Paper | 120-300 gsm | 70 bags/hour |
| Jute/Burlap | 500-800 gsm | 60 bags/hour |
4. Ergonomic Operation
Height-Adjustable Conveyor (800-1200mm)
Foot Pedal Control (freeing operator’s hands)
Quick-Release Thread Guides (<30s reload)
Critical Specifications
Stitch Type: Lockstitch (Type 304 SS thread)
Max Bag Width: 600mm
Stitch Length: 5-15mm (adjustable)
Thread Capacity: 5,000m spools
Power: 380V/50Hz, 1.5kW (ATEX: 24VDC)
Dust Emission: ≤3mg/m3 (ISO 14644)
Footprint: 1500×800×1400mm (L×W×H)
Industry-Specific Solutions
Cement & Building Materials
Tungsten-coated needles for abrasive cement dust
Anti-static kit (surface resistance <10? Ω)
Food & Feed
USDA/FDA-compliant food-grade oils
Washdown-ready SS304 construction
Chemicals
Corrosion-resistant components (Hastelloy C-22)
Nitrogen purge option for combustible dusts
Case Study: US Animal Feed Producer
Challenge:
50lb paper sacks ruptured at stitch line
Dust explosions during closing
Solution:ATEX model with reinforced stitching
Results:
? Zero sack failures in 500K+ bags
? Compliance with NFPA 652
? ROI in 9 months
Global Compliance & Value
Certifications
CE Machinery Directive
ATEX 2014/34/EU (Zone 21)
FDA CFR 21 (food contact)
Cost Advantage
50% lower TCO vs EU equivalents
Modular Upgrades:
Inkjet batch coding
Auto bag placer
Stitch inspection camera
Support Commitment
24/7 multilingual troubleshooting
Critical spares global dispatch ≤72h:
Needle assemblies
Tension discs
Dust filters
APPLICABLE BARREL TYPE
