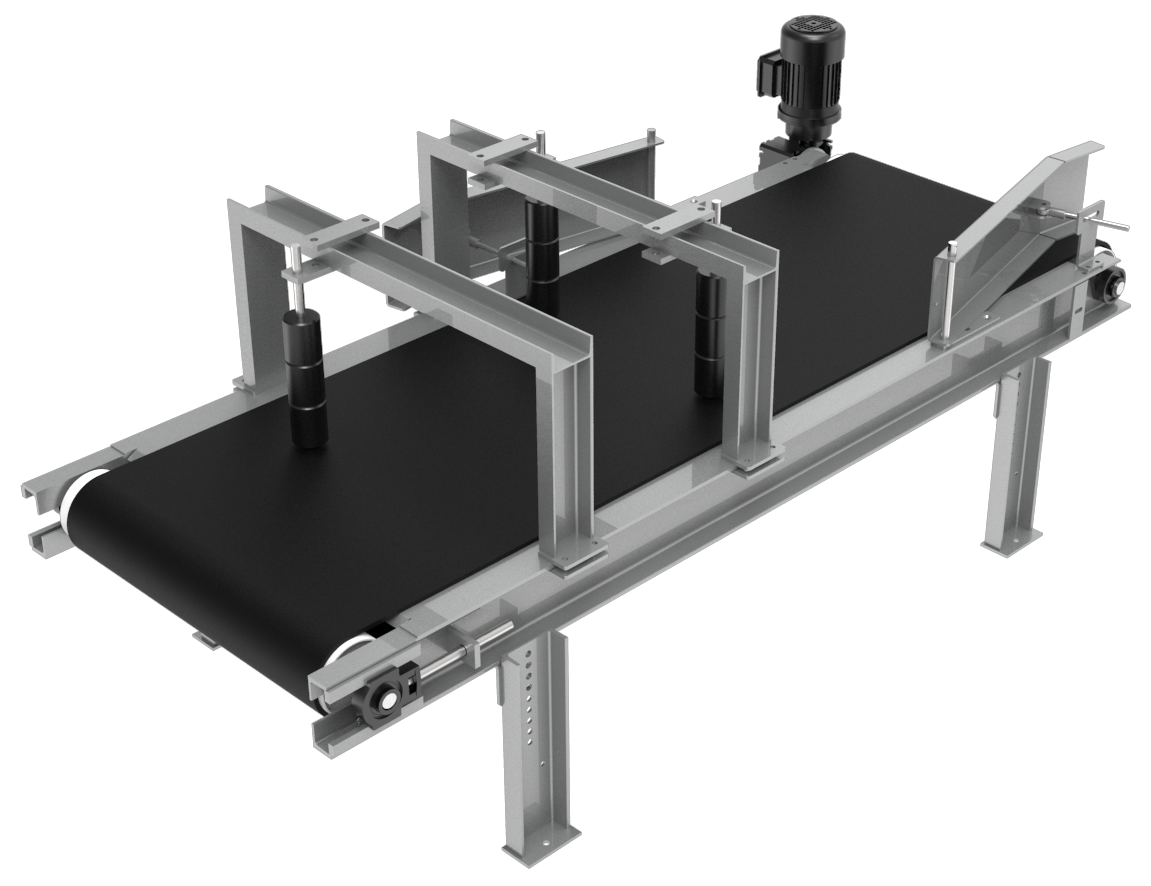

Bag Turner Conveyors
Shanghai Guangzhi’s Bag Turner Conveyors rotate 10-50kg sacks 90°/180° at 40 bags/min. Laser-guided precision, PLC control & zero-damage handling. CE/ATEX compliant.
- Brand： glzon
- Model： GZM
Product Essence: Precision Reorientation for Optimal Stacking
Shanghai Guangzhi Automation’s Bag Turner Conveyors solve end-of-line bag alignment challenges – intelligently rotating 10-50kg sacks (PP/paper/jute) by 90° or 180° at 40 bags/minute. Combining laser-guided positioning, zero-impact flipping, and PLC-controlled motion, this system eliminates manual handling while ensuring perfect pallet matrix formation.
Core Technology Innovations
1. Intelligent Bag Manipulation
Vision-Guided Rotation: 3D LiDAR scans bag dimensions (±1mm accuracy) before calculating optimal flip trajectory
Zero-Contact Gripping: Vacuum suction cups + adaptive pressure control (0.2-0.8 bar) prevent surface damage
Dynamic Speed Matching: Auto-syncs with upstream conveyors (10-30 m/min)
2. Industrial-Grade Durability
Heavy-Duty Rotation Module:
Hardox 500 turntable (300,000+ cycles lifespan)
IP66-rated servo motors (ATEX Zone 22 option)
Impact Absorption: Hydraulic dampeners reduce G-force to <0.5 during flipping
3. Smart Integration Capabilities
PLC Communication: Modbus TCP/Profinet sync with palletizers
Auto Mode Switching:
90° for interlock stacking
180° for label positioning
0° bypass mode
Technical Specifications
| Parameter | Specification |
|---|---|
| Bag Capacity | 10-50kg |
| Bag Dimensions | L: 400-800mm × W: 300-600mm |
| Rotation Angles | 90° / 180° (±0.5°) |
| Throughput | 40 bags/minute |
| Rotation Time | 1.5s (180° flip) |
| Power Supply | 380V/50Hz, 4.5kW |
| Conveyor Width | 700mm (adjustable guides) |
| Noise Level | ≤68 dB(A) |
| Footprint (L×W×H) | 3200×1200×1600mm |
Material-Specific Engineering
PP Woven Bags
Anti-static brushes (surface resistance <10? Ω)
Non-marking polyurethane rollers
Paper Sacks
Low-pressure suction cups (≤0.3 bar)
Dust extraction ports at transfer points
Jute/Burlap
Barb-resistant gripper plates
Fiber containment shroud
Operational Intelligence
10" HMI Touchscreen:
Visual bag tracking
Rotation angle presets
Error diagnostics (e.g., misaligned bags)
Predictive Analytics:
Bearing wear monitoring
Motor load optimization
Safety Systems:
Light curtains at entry/exit
Emergency reversal function
Case Study: Canadian Fertilizer Plant
Challenge:
25kg NPK bags required manual 180° turns for barcode visibility
12% bag damage during manual handling
Solution:Bag Turner with vacuum grippers + barcode alignment mode
Results:
? 100% barcode scan success
? Zero bag damage
? ROI in 6 months
Global Compliance & Value
Certifications:
CE EN 620:2021 (Continuous Handling Equipment)
ATEX 2014/34/EU (Zone 22 option)
ISO 9001:2015
Cost-Saving Features:
Energy Recovery: Regenerative drives capture 30% braking energy
Modular Design:
Bolt-on extension for oversized bags
Retrofits existing conveyors
Upgrade Ecosystem:
| Module | Function |
|---|---|
| Barcode Alignment | Auto-rotates bags for scanner optimal position |
| Weight Verification | In-line load cells (±0.2kg accuracy) |
| RFID Integration | Reads/writes tags during rotation |
Support & Service
24/7 Global Assistance:
Remote diagnostics via IIoT gateway
AR-guided maintenance (Microsoft HoloLens)
Critical Spares:
Vacuum gripper sets
Hardox wear plates
Servo drive units
Global delivery ≤72h from Shanghai/Houston/Rotterdam hubs
