Automatic 20L container filler: 42 units/hour, ±0.15% accuracy. Handles lubricants/chemicals. ATEX certified. Universal container system. Free demo!

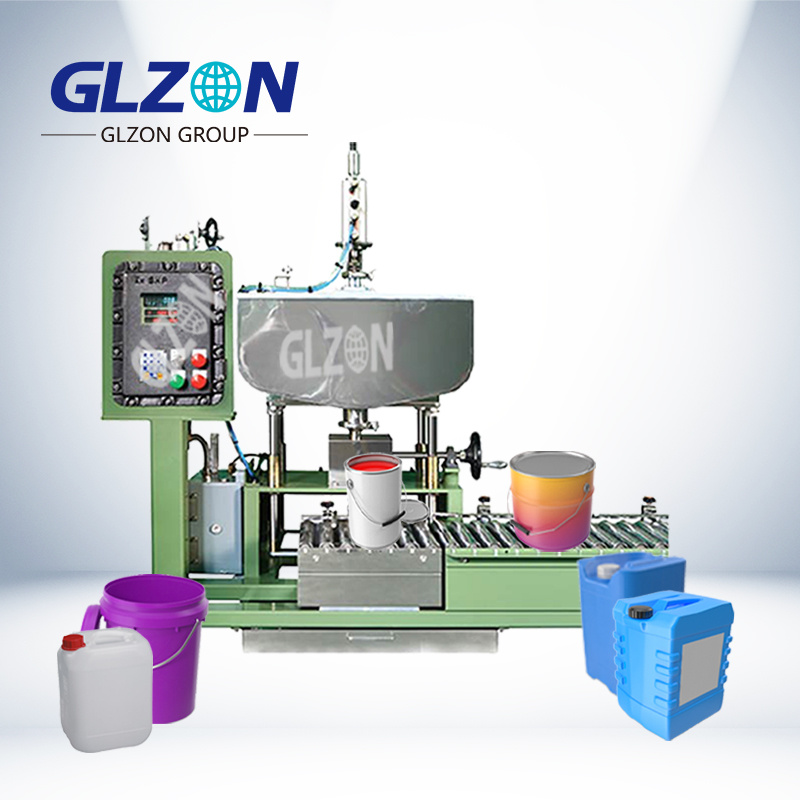

Automatic 20L Container Filling System
High-Speed Precision ? Universal Adaptability ? Hazardous Liquid Specialist
| Parameter | MF-5100 (Standard) | MF-5200X (ATEX) | MF-5300H (High-Visc) |
|---|---|---|---|
| Container Compatibility | Jerrycans/Pails/Gallons (15-25L) | Same + Drums | Same + Square Pails |
| Throughput | 42 units/hour | 38 units/hour | 35 units/hour |
| Accuracy | ±0.15% gravimetric | ±0.2% | ±0.18% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 50-1,000,000 cP |
| Filling Technology | Dual Coriolis Meters | ATEX Gear Pump | Heated Screw Conveyor |
| Nozzle System | Auto-Height Adjustment (300mm range) | Same + Static Dissipation | Contact-Free Radar Fill |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | Hardox 500 + Ceramic Coating |
| Changeover Time | <90s (Tool-Free) | <100s | <85s |
| Leak Prevention | Vacuum Cutoff + Drip Tray | Triple Seal System | Air-Knife + Reverse Suction |
| Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 380V/50Hz, 7.2kW |
| Air Consumption | 200 L/min @ 0.6MPa | 180 L/min | 220 L/min |
| Container Recognition | AI Vision System (99.8% accuracy) | Same | Same + RFID Tag Reading |
| Footprint (L×W×H) | 3200×1800×2500mm | 3500×2000×2700mm | 3300×1900×2600mm |
Key Features:
Zero-Spill Technology:
| Container | Sealing Method | Residual |
|---|---|---|
| Jerrycan | Inflatable Neck Seal | <0.1ml |
| Pail | Magnetic Skirt | <0.05ml |
| Gallon | Spring-Loaded Gasket | <0.08ml |
Static Control:
Ionized Air Curtain (10? ions/cm3)
Grounding Verification (<10Ω)
| Liquid Type | Filling Mode | Flow Rate |
|---|---|---|
| Thin Oils (ISO VG 32) | High-Speed Gravity | 25 L/min |
| Greases (NLGI 2) | Pulsed Piston | 8 kg/min |
| EP Additives | Micro-Dosing System | ±0.5% accuracy |
Lubricant Blending
| Feature | Specification |
|---|---|
| Additive Dosing | 8-Port System (±0.3%) |
| Viscosity Control | Real-Time Temp Compensation (±0.5cP) |
| Foam Prevention | Vacuum Degassing (-0.8 bar) |
Chemical Processing
ATEX Zone 1 Compliance:
Pressurized Cabinets (>50Pa)
Intrinsic Safety Barriers
Corrosion Resistance:
| Chemical | Material Solution |
|---|---|
| Acids (pH<2) | Zirconium 705 Flow Path |
| Chlorinated Solvents | PFA-Lined Components |
Food-Grade Lubricants
USDA H1 Compliance
CIP/SIP Capability
Allergen Control Protocols
10" HMI with LubriOS?
AI-Driven Features:
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Pump Efficiency | <90% Flow Rate |
| Seal Wear | Friction >8N |
Anomaly Detection:
| Fault | Resolution |
|---|---|
| Overfill Risk | Flow Reduction |
| Container Misalignment | Auto-Rejection |
| Metric | Manual Filling | MF-5100 | Improvement |
|---|---|---|---|
| Throughput | 15 units/hour | 42 units/hour | 180% faster |
| Accuracy | ±3-5% | ±0.15% | 20-33x better |
| Product Loss | 4-8% | <0.1% | ↓98% |
| Operator Safety | High Risk | Barrier-Guarded | Zero Exposure |
? ATEX 2014/34/EU (MF-5200X) ? CE EN 60204-1 ? FDA 21 CFR 177.2600 ? ISO 9001:2015 ? UL 1203 Explosion-Proof
1. AGV Container Loading → 2. AI Vision Positioning → 3. Auto-Nozzle Selection → 4. N? Purging (O?<0.5%) → 5. Precision Filling (±0.15%) → 6. Weight Verification → 7. Cap Sealing → 8. Palletizing
Cycle Time: 85 seconds/unit
