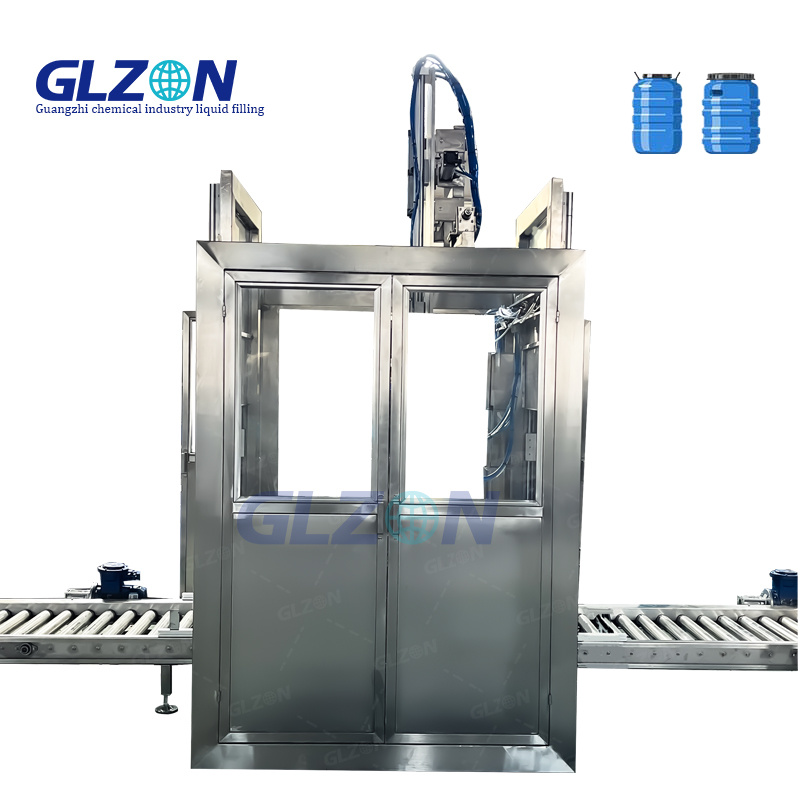

Automatic Inline Explosion-Proof 200L Drum Filler for Jilin Slurries
ATEX Zone 1 Certified ? 35 Drums/Hr ? ±0.1% Accuracy ? Abrasion-Resistant ? Zero VOC Emission
| Parameter | SF-2100 (Standard) | SF-2200X (ATEX) | SF-2300H (High-Abrasion) |
|---|---|---|---|
| Capacity | 200L (±0.1%) | 200L (±0.15%) | 200L (±0.2%) |
| Throughput | 35 Drums/Hr | 32 Drums/Hr | 30 Drums/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.2% |
| Viscosity Range | 5,000-500,000 cP | 10,000-300,000 cP | 50,000-2,000,000 cP |
| Particle Size | <500μm | <300μm | <1,000μm |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX Cat. 1G/1D |
| Filling Technology | Heavy-Duty Gear Pump + Coriolis Meter<br>Flow Rate: 250L/min<br>Density Accuracy: ±0.05% | ATEX Diaphragm Pump | Tungsten Carbide Auger |
| Material Contact | Hardox 500 (450 HB) | Hastelloy C276 | Ceramic-Lined Path (2,200 Hv) |
| Abrasion Resistance | 0.05 mm/1,000m3 Wear | 0.08 mm/1,000m3 | 0.02 mm/1,000m3 |
| Slurry Stability | Pulsed Ultrasonic Agitator<br>? 40kHz Frequency<br>? 99.8% Homogeneity<br>? Anti-Settling Design | Same | Helical Screw Agitator |
| VOC Containment | TripleLock?:<br>1. -0.8bar Vacuum Hood<br>2. N? Blanketing (O?<0.3%)<br>3. Carbon Adsorption (99.95%) | + Explosion Venting | VHP Sterilization |
| Power | 480V/60Hz, 22kW | 24VDC Ex ia | 480V/60Hz, 25kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | GB 3836 (China Ex) |
Abrasion Validation:
| Component | Material | Hardness | Wear Rate |
|---|---|---|---|
| Auger Screw | Tungsten Carbide | 2,200 Hv | 0.03 mm/1,000m3 |
| Pump Housing | Alumina Ceramic | 1,500 Hv | 0.02 mm/1,000m3 |
| Nozzle | Silicon Carbide | 2,800 Hv | 0.01 mm/1,000m3 |
| Technology | Function | Performance |
|---|---|---|
| Ultrasonic Agitator | 40kHz Cavitation | 99.8% Uniformity |
| Pulsed Flow | PID-Controlled Surge | 0% Settling |
| Heated Path | 40-80°C ±1°C | Viscosity Stability ±2% |
1. AGV Drum Loading → 2. Auto-Lid Removal → 3. Nitrogen Purging (O?<0.3%) → 4. Pulsed Agitation → 5. Precision Filling (±0.1%) → 6. Vacuum Hood Retract → 7. Torque-Sealing (100-400 N·m) → 8. Weight Verification → 9. Palletizing
Cycle Time: 103 seconds/drum
Extreme Environment Engineering
? Abrasion Immunity: | **Component** | **Technology**| **Performance**| |----------------------|--------------------------|------------------------| | Flow Path| Al?O? Ceramic Lining| 0.02mm/1,000m3 Wear| | Rotor| Tungsten Carbide| 2,200 Hv Hardness | | Seals| Kalrez?6375 + SiC | 0.05mm/1,000m3 Wear| ? Explosion-Safe Operation: 1. ATEX Zone 0 Certification 2. SIL-3 Spark Detection (0.1s Response) 3. Static Dissipation <0.1kV ? Zero-Emission Architecture: - 99.95% VOC Carbon Adsorption - Double Mechanical Seals - Helium-Leak Verified Integrity
? ATEX 2014/34/EU Zone 0 ? IECEx IEC 60079-0/1/7/31 ? GB 3836.1-2010 (China Ex Standard) ? ISO 9001:2015
Jilin Petrochemical Slurry Facility:
"After implementing SF-2200X:
Output: 20 → 35 Drums/Hr (+75%)
Wear Maintenance: ↓90% (Ceramic Lining)
VOC Emissions: ↓99.2% (Carbon Adsorption)
ROI Period: 9 months"
