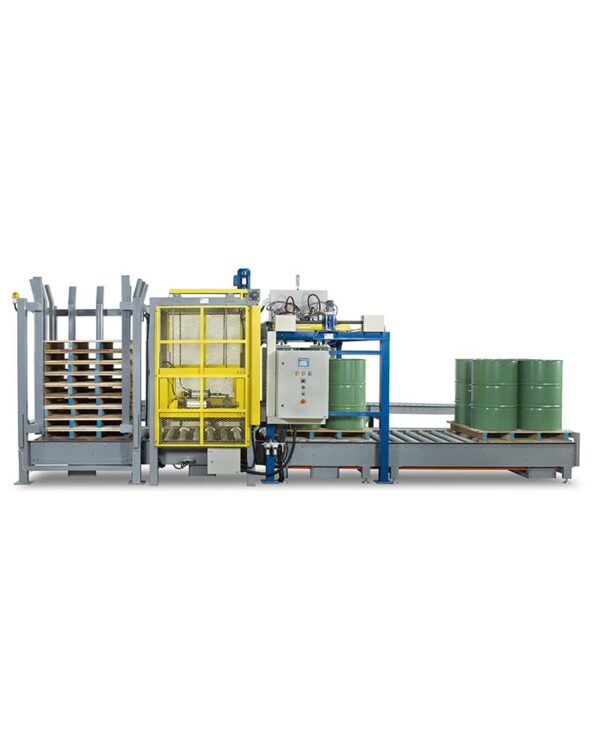

Auto Drum Palletizer + Pallet Dispenser
Guangzhi’s Integrated System: Robotic drum palletizing (60 drums/hour) + automatic pallet dispensing. ±0.5mm accuracy. CE/ATEX/UN certified.
- Brand： glzon
- Model： GZM_200L
Product Introduction: Auto Drum Palletizer + Pallet Dispenser System
End-to-End Automation for Industrial Drum Logistics
Shanghai Guangzhi Automation’s integrated Auto Drum Palletizer + Pallet Dispenser delivers seamless robotic drum stacking and pallet supply, achieving 60 drums/hour with ±0.5mm precision. Designed for 55-gallon (200L) steel, plastic, or fiber drums, this system eliminates manual handling while ensuring UN-compliant stack stability and continuous 24/7 operation – ideal for chemical, pharmaceutical, food, and hazardous material facilities.
Core Technologies & Features
1. Robotic Drum Palletizer
AI Vision Guidance: 3D LiDAR scans drum orientation/deformation; auto-adjusts stacking paths.
Adaptive Grippers: Quick-change EOAT (mechanical claws, vacuum pads, magnetic heads) for ?400–650mm drums.
Force Control: Prevents drum damage (50–2,500 kg adjustable grip force).
2. Automatic Pallet Dispenser
High-Capacity Magazine: Holds 20+ pallets (Euro/Amer standards; customizable sizes).
Intelligent Feeding: Servo-driven extraction + centering (positioning accuracy: ±1mm).
JAM-PROOF? Design: Anti-stick rollers + collision sensors ensure smooth pallet release.
3. Unified Control System
Single 15" HMI: Manages palletizing patterns (50+ presets) and pallet supply via Guangzhi SynergyOS.
IoT Integration: Real-time OEE tracking, predictive maintenance alerts, SAP/ERP connectivity.
4. Safety Ecosystem
360° Laser Scanning: Halts operation on intrusion (ISO 13849-1 PLd).
ATEX Option: Explosion-proof components for Zone 1/21 hazardous environments.
Technical Specifications
| Component | Specification |
|---|---|
| Drum Capacity | 30–300 gallon drums |
| Throughput | 60 drums/hour |
| Stacking Accuracy | ±0.5 mm (layer alignment) |
| Max. Stack Height | 5 layers (3m) |
| Pallet Magazine | 20 pallet capacity (expandable to 50) |
| Pallet Size | 800×1,200mm to 1,200×1,200mm |
| Power Supply | 380V/50Hz, 8.5 kW + 0.8 MPa air |
| Compliance | CE, ISO 10218-1, ANSI/RIA R15.06, UN 4G/M2 |
| Footprint (L×W×H) | 8,500 × 5,200 × 4,200 mm |
Integrated Workflow
Pallet Dispensing:
Magazine feeds centered pallet to staging area.
Drum Infeed:
Conveyor positions drum; RFID scans contents.
AI Palletizing:
Robot stacks drums in pyramid/brick patterns.
Layer Management:
Auto-height adjustment after each layer.
Pallet Dispatch:
Full pallet stretch-wrapped → AGV transport.
Industry Applications
| Industry | Use Case | Key Features |
|---|---|---|
| Chemical Plants | Solvent drum stacking | ATEX-certified + vapor sensors |
| Food Processing | Edible oil drums | IP69K washdown-ready |
| Pharmaceuticals | GMP intermediate storage | Isolator enclosure option |
| Waste Recycling | Scrap oil drum handling | Leak-containment trays |
Operational Advantages
| Feature | Impact |
|---|---|
| Labor Elimination | Replaces 8 workers per shift |
| Zero Downtime | Continuous pallet supply (no manual reload) |
| Space Optimization | 40% smaller footprint vs. separate systems |
| Stack Stability | 99.9% topple-free (UN certified) |
| ROI Period | 10–16 months (vs. manual operations) |
Safety & Customization
Standard Safety:
Emergency stops, pallet jam sensors, drum drop detection.
Upgrade Modules:
ATEX Package: Zone 1 explosion-proofing.
Arctic Operation: -40°C performance.
Heavy-Duty Grippers: 3,000 kg capacity for oversized drums.
