Shanghai Guangzhi’s Air Valve Bag Packer fills dry mortar into 5-50kg valve bags at 25 bags/min. ±0.5% accuracy, ATEX dust control & auto-seal verification. ISO 9001 certified.

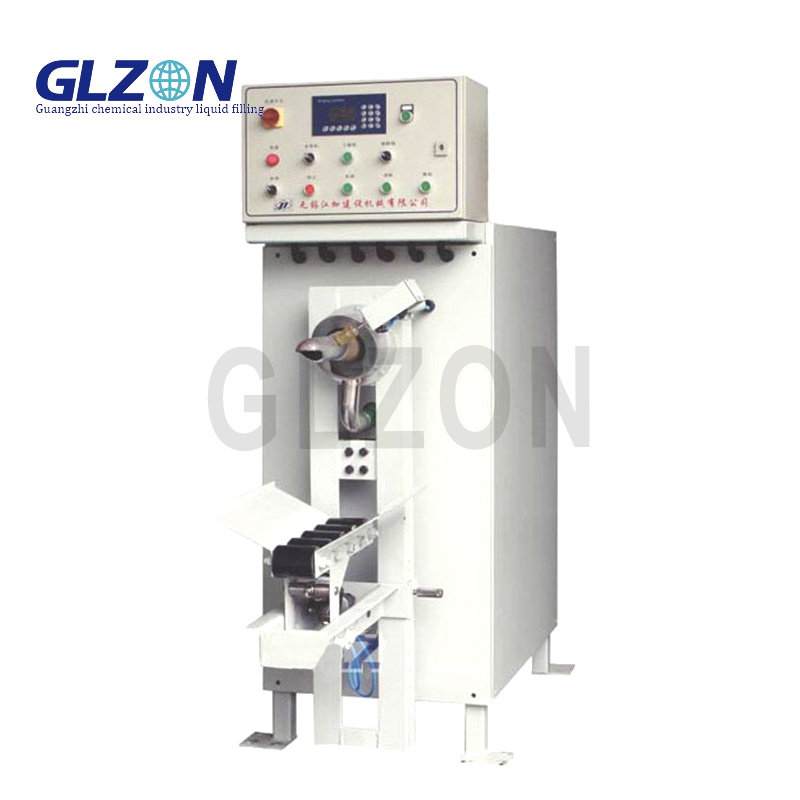

Shanghai Guangzhi Automation’s Air Valve Bag Packaging Machine revolutionizes dry mortar (plaster, grout, tile adhesive) packaging into 5-50kg valve bags. Integrating hermetic filling (±0.5% accuracy), ATEX-compliant dust suppression, and automated valve sealing verification, it achieves 25 bags/minute while reducing material waste by 30% and eliminating fugitive dust emissions.
1. Hermetic Valve Sealing Technology
Anti-Dust Seal Collar: Inflatable polyurethane sleeve locks bag valve during filling (IP65 protection)
Seal Force Verification: 1kN pressure sensor detects seal integrity pre-fill
±0.5% Weighing Accuracy: Load cell system with anti-segregation vibration table
2. Industrial-Grade Dust Control
ATEX Zone 21 Option: Explosion-proof motors & pneumatic valves for combustible dusts
Triple Filtration System:
? Pre-filtration cyclone (removes >95% >5μm particles)
? HEPA final filter (99.97% @ 0.3μm)
? Negative pressure suction (-15Pa)
Dust Emission: ≤2mg/m3 (ISO 8573-1 Class 1)
3. Heavy-Duty Durability
Abrasion-Resistant Components:
Hardox 450 wear plates (4x life vs stainless steel)
Tungsten carbide-coated auger
IP55 Protection: Full dust/water resistance for harsh plant environments
| Parameter | Standard Model | ATEX Model |
|---|---|---|
| Bag Weight Range | 5-50kg | 5-40kg |
| Throughput | 25 bags/min | 20 bags/min |
| Filling Accuracy | ±0.5% | ±0.7% |
| Valve Size | 35-75mm ? | 35-65mm ? |
| Max Dust Emission | 5mg/m3 | 2mg/m3 (ISO 14644) |
| Power | 380V/50Hz, 8.5kW | 24V DC (intrinsic safety) |
| Air Consumption | 120 L/min @ 0.6MPa | 100 L/min @ 0.5MPa |
| Footprint (L×W×H) | 3500×2200×4000mm | 3700×2200×4000mm |
| Mortar Type | Filling Solution | Dust Mitigation |
|---|---|---|
| Lightweight Mortar | Low-pressure aerated filling | Dedusting agent injection |
| Tile Adhesive | Vibration-assisted flow aids | Humidified air curtain |
| Cement Grout | Anti-static screw conveyor (10? Ω) | Explosion venting panels |
HeidelbergCement Supplier Case (Germany):
Challenge: 8% dust emission + valve seal failures causing product hardening
Solution: ATEX valve packer with real-time seal verification
Results:
99.4% valve seal integrity
0.2% material loss (vs. 1.5% industry average)
ROI in 14 months
Cost Efficiency
40% lower CAPEX vs European counterparts
Localized Support: Engineers in 15 countries
Quality Assurance
ISO 9001:2015 certified production
100% pre-shipment FAT testing
CE & ATEX compliance
Modular Upgrades
Palletizing Robot: Stack 1-ton bags
Batch Data Logging: OPC UA integration
Moisture Control: Microwave analyzer (±0.3%)
Certifications
CE Machinery Directive
ATEX 2014/34/EU (Zone 21 option)
ISO 14001 Environmental
Smart Maintenance
Remote OEE Monitoring: Real-time production dashboards
AR Troubleshooting: Guided via Microsoft HoloLens
Critical Spares:
Valve seal collars
Load cells
Filtration membranes
Global delivery ≤72h
