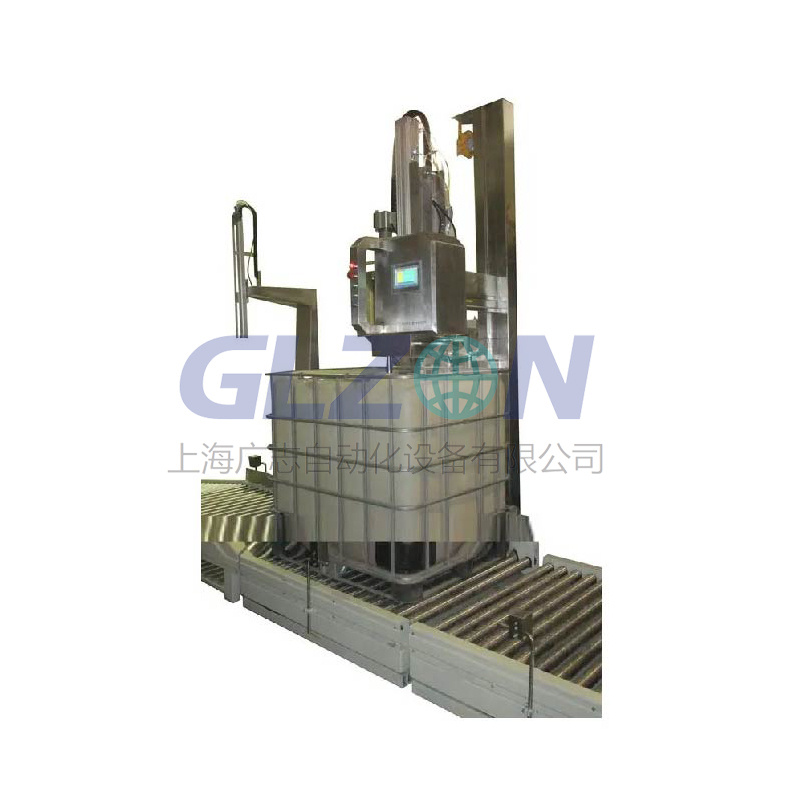

MegaFill MF-10000 SeriesIndustrial 200L-1000L Varnish & Adhesive Filling System with Gravimetric PrecisionHeavy-Duty High-Viscosity Handling • 18 Drums/Hr • ±0.1% Accuracy • ATEX/FDA Dual Complian
Industrial 200L-1000L Varnish & Adhesive Filling System with Gravimetric Precision
Heavy-Duty High-Viscosity Handling ? 18 Drums/Hr ? ±0.1% Accuracy ? ATEX/FDA Dual Compliance ? Zero-Drip Technology
| Parameter | MF-1010 (Standard) | MF-1020X (ATEX) | MF-1030P (Pharma-Grade) |
|---|---|---|---|
| Capacity Range | 200-1000L (±0.1%) | 200-1000L (±0.15%) | 200-1000L (±0.08%) |
| Throughput | 18 Drums/Hr | 16 Drums/Hr | 15 Drums/Hr |
| Viscosity Range | 500-2,000,000 cP | 1,000-1,500,000 cP | 100-3,000,000 cP |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Filling Technology | Coriolis Mass Flow Meter + Gear Pump | ATEX Diaphragm Pump | Sanitary Peristaltic Pump |
| Weighing System | Multi-Point Load Cells<br>? 0.05% Resolution<br>? Air Buoyancy Compensation<br>? ASTM E74 Certified | Same + SIL-2 Certification | FDA 21 CFR Part 11 |
| Heating System | Jacketed Flow Path<br>Temp Range: 40-120°C<br>±0.5°C Stability | Same | CIP/SIP Integration |
| Drip Control | TripleShield?:<br>1. Vacuum Suction (-0.8bar)<br>2. Laser-Cut Capillary Break<br>3. PTFE Nano-Coating | Spring-Loaded Nozzle | Ultrasonic Scraper |
| Container Compatibility | Steel Drums ? IBC Totes ? Composite Containers<br>Lid Types: DIN ? Camlock ? Tri-Clamp | UN-Certified Totes | Aseptic RTP Connections |
| Material Contact | Zirconium Alloy (R60702) | Hastelloy C276 | 316L EP (Ra<0.2μm) |
| Changeover Time | <120s (Tool-Free) | <150s | <100s |
| Power | 480V/60Hz, 18kW | 24VDC Ex ia | 480V/60Hz, 16kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 175.300 |
Performance Validation:
| Material | Viscosity | Accuracy | Residual |
|---|---|---|---|
| Epoxy Resin | 850,000 cP | ±0.07% | <0.1L |
| Polyurethane | 1,200,000 cP | ±0.12% | <0.15L |
| Silicone Sealant | 450,000 cP | ±0.05% | <0.08L |
| Layer | Technology | Performance |
|---|---|---|
| Primary Seal | Inflatable Kalrez? Gasket | <0.01mg/m3 VOC Leak |
| Secondary Barrier | Double Mechanical Seal | API 682 Plan 53B |
| Tertiary Defense | Activated Carbon VRU | 99.97% VOC Capture |
Industrial Coatings
| Challenge | Innovation | Certification |
|---|---|---|
| Skin Formation | N? Blanketing (O?<0.1%) | ASTM D1544 |
| Color Separation | Helical Agitator (5 RPM) | ΔE<0.5 (ASTM D2244) |
| Settling | Pulsed Ultrasonic Vibration | 99.9% Homogeneity |
Hazardous Adhesives
Explosion Safety:
Corrosion Resistance:
| Chemical | Material Solution | Corrosion Rate |
|---|---|---|
| Methylene Chloride | Zirconium Alloy Path | 0.002 mm/yr |
| Acetic Acid | Hastelloy C276 | 0.05 mm/yr |
Pharmaceutical Adhesives
| cGMP Feature | Technical Specification |
|---|---|
| Cleanability | SIP Validation (121°C/30min) |
| Data Integrity | Blockchain Batch Tracking |
| Material Safety | USP Class VI Certification |
1. Container Positioning → 2. Auto-Nozzle Connection (±0.5mm) → 3. Nitrogen Purging (O?<0.3%) → 4. Heated Filling (±0.1%) → 5. Vacuum Nozzle Retract → 6. Torque-Sealing (50-200 N·m) → 7. Weight Verification → 8. Palletizing
Cycle Time: 3.3 minutes/1000L
Heavy-Duty Precision
? Gravimetric Superiority: | **Component** | **Performance**| |------------------------|------------------------| | Load Cells| ±0.05% FS Accuracy | | Air Buoyancy Comp. | ±0.1% Environmental Error | | Coriolis Meter | ±0.1% Density Accuracy | ? Zero-Emission Architecture: 1. Triple-Seal Connection System 2. 99.97% VOC Recovery Unit 3. Helium Leak Detection (10?? mbar·L/s) ? Extreme Viscosity Handling: - 2,000,000 cP Capability - 120°C Heated Path - Self-Cleaning Tungsten Carbide Auger
? ATEX 2014/34/EU Zone 1 ? FDA 21 CFR 175.300 ? ASME BPE-2022
3M Industrial Adhesives Division:
"After implementing MF-1020X for 1000L epoxy totes:
Output: 8 → 18 Drums/Hr (+125%)
Material Savings: 3.2% → 0.15%
VOC Emissions: ↓98% (Carbon Adsorption)
ROI Period: 9 months"
