SoapFill Pro SF-3000 Series25L Industrial Liquid Soap Filling System for Cans & PailsPrecision Viscous Liquid Packaging with Zero Foam • CIP/SIP Ready • FDA/ATEX Dual ComplianceCore Technology Inn

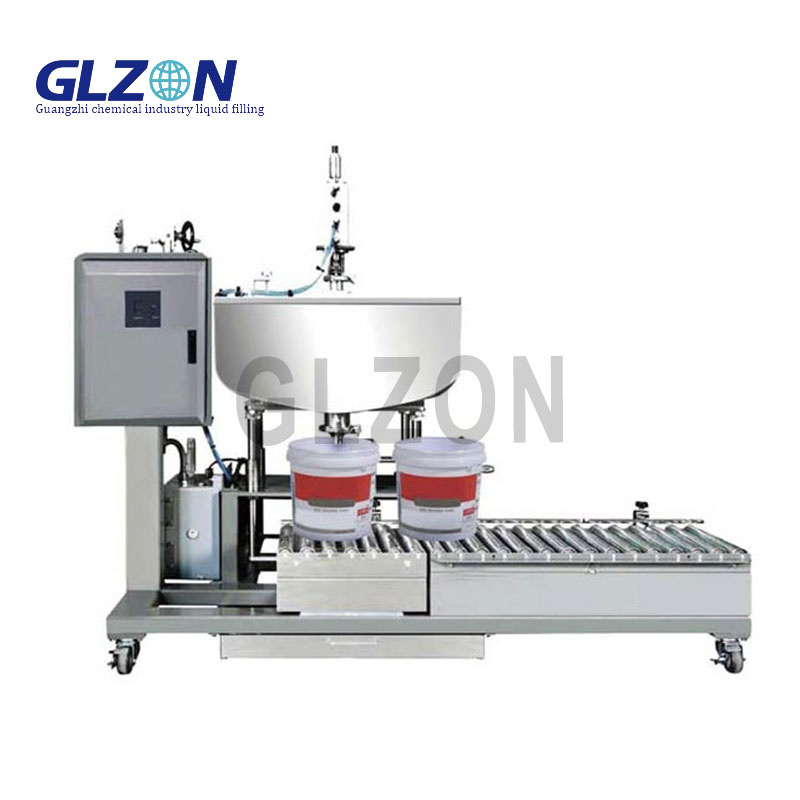

25L Industrial Liquid Soap Filling System for Cans & Pails
Precision Viscous Liquid Packaging with Zero Foam ? CIP/SIP Ready ? FDA/ATEX Dual Compliance
Performance Validation:
| Soap Type | Viscosity | Foam Height | Industry Standard |
|---|---|---|---|
| Detergent Gel | 80,000 cP | 0mm | 15-25mm |
| Antibacterial Soap | 120,000 cP | 0mm | 10-20mm |
| Industrial Degreaser | 50,000 cP | 0mm | 8-15mm |
| Technology | Function | Precision |
|---|---|---|
| Heated Path | 40-80°C Temperature Control | ±0.5°C |
| Shear Control | Laminar Flow Nozzle Design | 0% Molecular Shear |
| Real-Time Density Compensation | Coriolis Mass Flow Meter | ±0.1% Reading |
| Parameter | SF-3100 (Standard) | SF-3200X (ATEX) | SF-3300F (Food-Grade) |
|---|---|---|---|
| Capacity | 25L (±0.2%) | 25L (±0.25%) | 25L (±0.15%) |
| Throughput | 40 Cans/Minute | 36 Cans/Minute | 35 Cans/Minute |
| Viscosity Range | 50-200,000 cP | 100-150,000 cP | 10-500,000 cP |
| Accuracy | ±0.2% Gravimetric | ±0.25% | ±0.15% |
| Container Compatibility | Steel Pails ? Plastic Cans ? Composite Drums | Same + Safety Cans | Same + USDA Containers |
| Filling Technology | Vacuum-Assisted Mass Flow | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Foam Control | Vacuum Submersion + Coanda Nozzle | Same + Nitrogen Blanketing | Ultrasonic Defoaming |
| Cleaning System | CIP 20-min Cycle | Solvent Purge | SIP/CIP 15-min Cycle |
| Changeover Time | <90s (Tool-Free) | <100s | <85s |
| Power | 480V/60Hz, 7.5kW | 24VDC Ex ia | 480V/60Hz, 6.8kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 177.2600 |
Industrial Cleaning Chemicals
| Feature | Technology | Certification |
|---|---|---|
| Static Control | Ionized Air Curtain (10? ions/cm3) | NFPA 77 |
| VOC Containment | Activated Carbon Adsorption | EPA Method 25 |
| Corrosion Resistance | Zirconium Alloy Flow Path | NACE MR0175 |
Food Processing & Sanitation
Hygienic Design:
Preservation Tech:
| System | Function |
|---|---|
| N? Flushing | O?<0.1% Headspace |
| UV-C Tunnel | Microbial Reduction 99.99% |
Pharmaceutical Grade
| Component | GMP Compliance |
|---|---|
| Cleanability | SIP Validation (121°C/30min) |
| Data Integrity | 21 CFR Part 11 Audit Trail |
| Material Safety | USP Class VI Certification |
**10" HMI with SoapOS?**
AI-Driven Features:
Quality Sentinel:
| Parameter | Action |
|---|---|
| pH Shift >0.3 | Flow Rate Adjustment |
| Density Variance >1% | Formula Recalibration |
Zero-Downtime System:
| Component | Alert Threshold |
|---|---|
| Pump Wear | Vibration >4.5mm/s |
| Seal Degradation | Friction >8N |
1. Can Infeed → 2. UV Sterilization → 3. Vacuum Chamber Seal (-0.8bar) → 4. Submerged Filling (±0.2%) → 5. Nitrogen Purging → 6. Torque-Sealing (30-100 N·m) → 7. 100% Leak Test → 8. Palletizing
Cycle Time: 1.5 seconds/can
Precision Engineering:
? Viscous Liquid Mastery: | **Technology**| **Performance**| |-------------------------|------------------------| | Heated Path| 80°C ±0.5°C| | Laminar Flow Nozzle| 0% Shear Degradation| | Vacuum Filling | 0% Air Entrapment | ? Foam Elimination: 1. -0.8bar Vacuum Pre-Conditioning 2. Coanda Effect Nozzle Design 3. Ultrasonic Defoaming Trigger ? Industrial Durability: - Tungsten Carbide Seats - IP69K Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 1 (SF-3200X) ? FDA 21 CFR 177.2600 ? EHEDG EL Class I ? ISO 9001:2015
Ecolab Manufacturing Facility Report:
"After 6 months using SF-3300F:
Output: 22 → 40 cans/minute (+82%)
Foam-Related Downtime: 8hrs/week → 0
Product Loss: 1.8% → 0.05%
ROI: 4.8 months"
