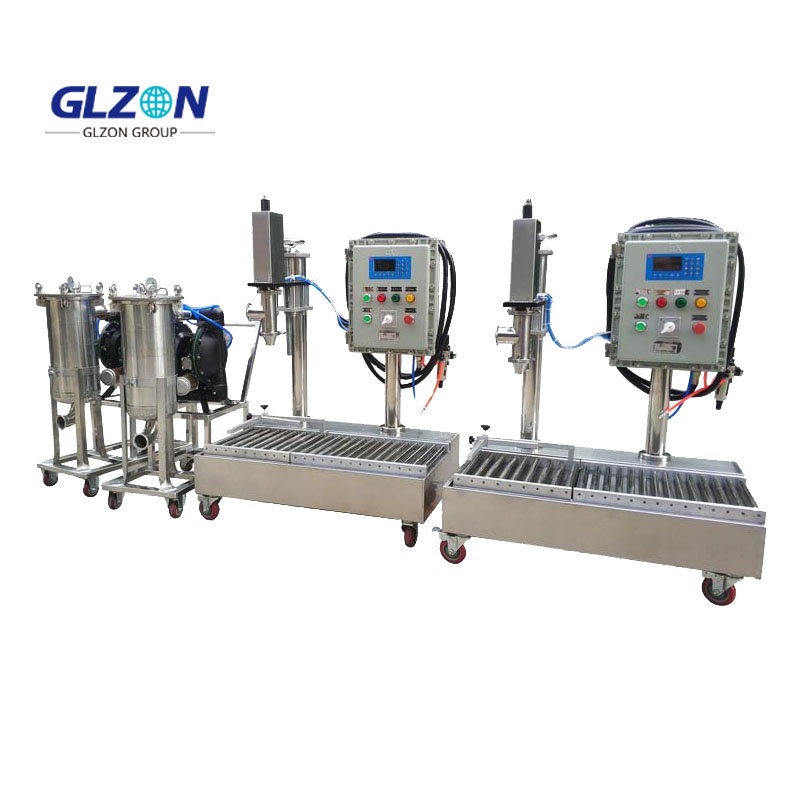

Semi-Automatic Jerrycan Filling MachineExplosion-Proof ? ±0.25% Accuracy ? 25 Cans/HourIdeal for Chemicals, Solvents, Lubricants & Hazardous LiquidsShanghai Guangzhi Automation’sGZ-JC50 Seriesrede
Explosion-Proof ? ±0.25% Accuracy ? 25 Cans/Hour
Ideal for Chemicals, Solvents, Lubricants & Hazardous Liquids
Shanghai Guangzhi Automation’s GZ-JC50 Series redefines safety and efficiency for filling jerrycans (5–50L) with flammable, corrosive, or viscous liquids. Combining ATEX/IECEx-certified explosion-proof design with servo-driven precision, this system cuts filling errors by 99%, reduces operator exposure to hazards, and delivers ROI in <8 months.
? ATEX Zone 1/21 Compliance
Integrated gas detection + pressurized control cabinet (IP66) prevents ignition of vapors (Group IIA/IIC gases).
? Zero-Drip Nano-Coated Nozzle
PTFE/SiC ceramic composite retracts instantly post-fill, eliminating spills (<0.1mL residual).
? Auto Viscosity Compensation
Handles 1–30,000 cP liquids (e.g., acetone to gear oil) via adaptive flow control.
? Quick-Change Can Adaptors
Tool-free swap between 5L, 10L, 20L, 30L, 50L jerrycans in <15 seconds.
? Ergonomic Anti-Fatigue Design
Height-adjustable conveyor + foot pedal operation reduces operator strain.
*Table: GZ-JC50 Performance & Safety Metrics*
| Parameter | Specification | Safety/Certification |
|---|---|---|
| Throughput | 20–25 jerrycans/hour (50L) | – |
| Accuracy | ±0.25% of set volume | Calibrated per ISO 17025 |
| Filling Range | 1–50 liters | – |
| Viscosity Range | 1–30,000 cP | Heated path option (80°C max) |
| Explosion Proof Rating | ATEX: Ex db ib mb IIB T4 Gb | IECEx, NEC 500 Class I Div 1 |
| Material Contact | 316L SS / PTFE / FFKM Kalrez? seals | Resists aromatics, acids, bases |
| Power Supply | 230V/50Hz, 2.2 kW + 0.7 MPa air | EMC Directive 2014/30/EU |
| Control System | 10" IP66 HMI + PLC with audit trail | 21 CFR Part 11 option |
| Safety Features | Emergency stop, vapor sensor, grounding alarm | SIL 2 (optional) |
| Dimensions | 1,500 × 900 × 1,800 mm (L×W×H) | Weight: 450 kg |
