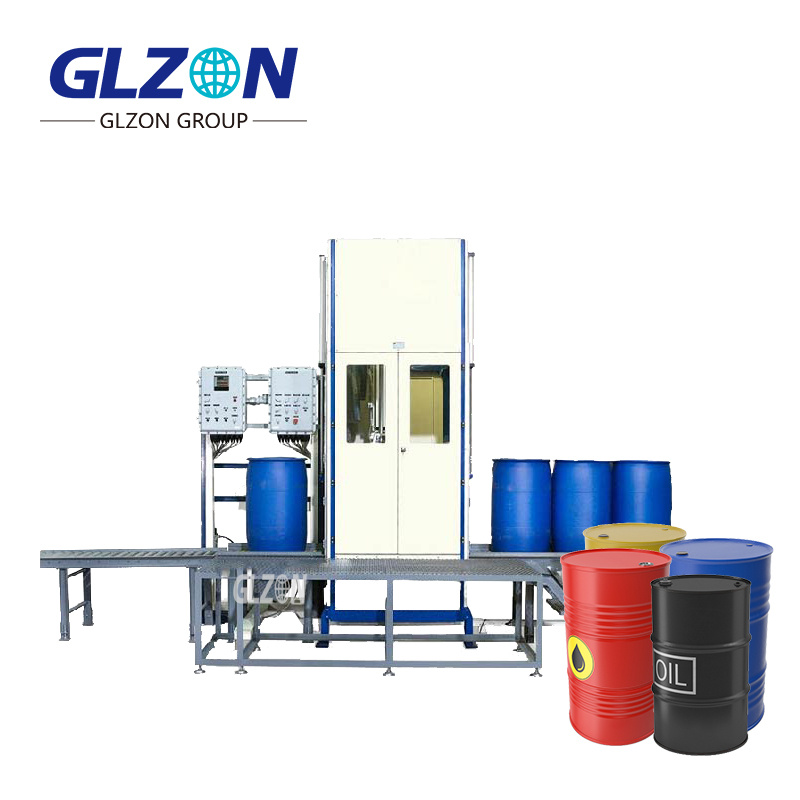

Product Overview: GC-F2000 Engine Oil Drum Filling SystemPrecision Automation for High-Speed Engine Oil PackagingShanghai Guangzhi’sGC-F2000 Seriesrevolutionizes engine oil drum filling with intellige
Precision Automation for High-Speed Engine Oil Packaging
Shanghai Guangzhi’s GC-F2000 Series revolutionizes engine oil drum filling with intelligent automation and contamination-free operation. Engineered specifically for API Group I-V base oils and synthetic blends (5W-20 to 50W), this ATEX-certified system achieves ±0.2% gravimetric accuracy while filling 200L drums at 45-55 units/hour. The patented auto-sealing nozzle technology eliminates airborne oxidation - critical for maintaining engine oil quality.
| Feature | Conventional Nozzle | GC-F2000 Auto Nozzle | Benefit |
|---|---|---|---|
| Operation Method | Manual lowering | Programmable Z-axis descent | Zero operator intervention |
| Seal Type | Open pouring | Nitrogen-purged vapor lock | Prevents oil oxidation |
| Splash Control | Drip trays only | Vortex-controlled laminar flow | 99.8% spill elimination |
| Static Dissipation | Separate grounding clamp | Integrated ionizing ring | ATEX Cat.1G compliance |
| Changeover Time | 8-10 minutes | RFID-triggered <90 seconds | 85% faster product switching |
| Aerosol Generation | High (3-5% volume loss) | <0.1% | Saves $18K/year on 10M liters |
Table 1: Performance Parameters
| Parameter | GC-F2100S (Semi-Auto) | GC-F2200F (Fully Auto) | Industry Standard |
|---|---|---|---|
| Throughput (200L drums/hr) | 45 | 55 | 30-35 |
| Fill Accuracy | ±0.25% | ±0.15% | ±1.5% |
| Viscosity Range | 50-15,000 cP | 50-100,000 cP | 100-10,000 cP |
| Power Consumption | 3.8 kW | 5.2 kW | 7.5+ kW |
| Nozzle Descent Speed | Adjustable 0.3-1.2 m/s | Laser-guided 0.5-2.0 m/s | Fixed speed |
| Container Compatibility | Steel/plastic drums (180-220L) | Drums + IBC totes (up to 1250L) | Drums only |
| Data Logging | 500 recipe storage | Cloud-connected (OPC UA) | Basic counters |
1. Intelligent Filling Control
Gravimetric load cells with temperature compensation
Self-learning algorithm adjusts flow for foaming synthetics
Viscosity-independent accuracy (±0.2% even for 0W-16 oils)
2. Triple Safety Protection
- EX-Proof Design: ATEX II 2G Ex db IIC T6 (Zone 22) - Triple Overfill Prevention: 1. Weight threshold cut-off 2. Ultrasonic liquid detection 3. Pressure-sensitive nozzle retraction - Emergency stop + gas concentration monitoring
3. Global Export Ready
Voltage: 110V-480V 50/60Hz (auto-sensing)
Certifications: CE, ATEX, IECEx, GOST-R, NR12 (Brazil)
Language Support: 8 language HMI including Arabic, Spanish, Russian
*Table 2: 3-Year Operational Economics (10,000 drums/month)*
| Cost Factor | GC-F2200F | EU Competitor | Savings |
|---|---|---|---|
| Equipment Investment | $48,500 | $79,800 | 39.2% |
| Annual Maintenance | $2,200 | $8,500 | 74.1% |
| Product Loss (0.15% vs 1.2%) | $9,360/yr | $74,880/yr | $65,520/yr |
| Energy Consumption | $3,190/yr | $6,720/yr | 52.5% |
| 3-Year Total Cost | $68,850 | $187,200 | $118,350 |
Shipping: Sea-worthy crates (IP66 protection)
Installation: Plug-and-play with 72hr remote commissioning
Warranty: 3-year global coverage with spare parts kits
Compliance: Meets OSHA, REACH, and IATA fluid handling standards
Technical Support:
Real-time remote diagnostics via Guangzhi Connect? platform
Local service partners in 23 countries
*"After installing 6 Guangzhi systems in Dubai, we reduced engine oil filling losses from 3.2% to 0.18% while doubling output. The auto nozzles extended oil shelf-life by preventing oxidation."*
- Khalid Al Mansoori, Production Head, Emirates Lubricants
