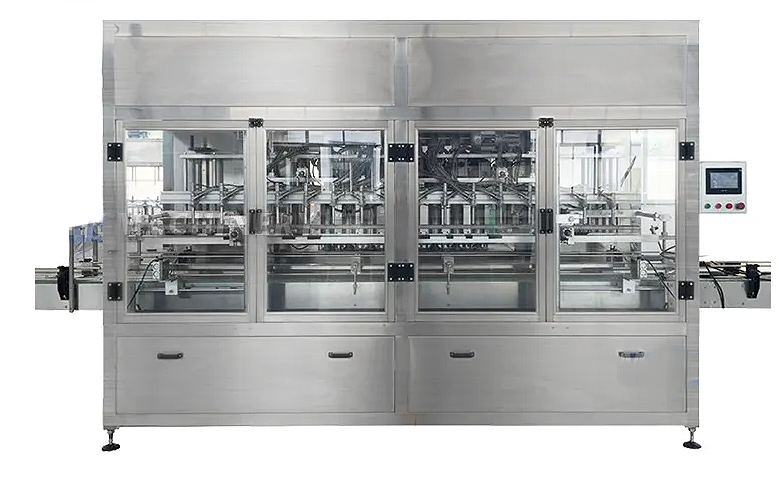

Introduction:In the dynamic landscape of manufacturing efficiency, the Automatic Detergent Filling Machine emerges as a technological marvel, seamlessly integrating innovation with the demands of the
Universal High-Speed Viscous Liquid Filling System
4000 BPH ? ±0.1% Accuracy ? 50-1,000,000 cP ? CIP/SIP Ready
| Parameter | MF-1010 (Detergent) | MF-1020 (Sauce/Honey) | MF-1030X (ATEX) |
|---|---|---|---|
| Capacity | 100ml-1L (±0.1%) | 100ml-1L (±0.15%) | 100ml-1L (±0.2%) |
| Throughput | 4000 bottles/hour | 4000 bottles/hour | 3600 bottles/hour |
| Accuracy | ±0.1% gravimetric | ±0.15% | ±0.2% |
| Viscosity Range | 50-500,000 cP | 100-1,000,000 cP | 50-300,000 cP |
| Solids Handling | Gel Beads <3mm | Pulp/Seeds <5mm | Powder Suspensions |
| Filling Technology | Servo Piston + Coriolis | Progressive Cavity Pump | ATEX Diaphragm Pump |
| Foam Control | Vacuum Degassing (-0.8 bar) | Pulsed Flow Agitation | N? Blanketing |
| Material Contact | 316L EP (Ra<0.4μm) | Ceramic-Coated Path | Hastelloy C276 |
| Changeover Time | <120s (Tool-Free) | <150s | <180s |
| Temperature Range | 5-80°C (±1°C) | 5-90°C (±0.5°C) | 5-70°C (±2°C) |
| Cleanability | CIP 20-min Cycle | SIP/CIP 25-min Cycle | Solvent Purge |
| Power | 480V/60Hz, 25kW | 480V/60Hz, 30kW | 24VDC Ex ia |
| Certifications | EHEDG EL Class I | FDA 21 CFR 113/114 | ATEX Zone 2 |
Performance Metrics:
| Product | Viscosity | Flow Rate | Residual |
|---|---|---|---|
| Laundry Gel | 50,000 cP | 1.8L/sec | <0.05ml |
| Tomato Ketchup | 100,000 cP | 1.2L/sec | <0.1ml |
| Manuka Honey | 300,000 cP | 0.8L/sec | <0.03ml |
| Technology | Function | Performance |
|---|---|---|
| Vacuum Degassing | -0.8bar @ 40°C | <0.5% Air Entrainment |
| Laminar Flow Nozzle | Reynolds No. <2000 | Zero Turbulence |
| Ultrasonic Burst | Microbubble Collapse | 99.9% Foam Elimination |
Detergents & Cleansers
| Feature | Specification |
|---|---|
| Surfactant Control | Low-Shear Path (Preserves Foam) |
| Dye Dispersion | ΔE<0.4 Color Consistency |
| Gel Stability | Ultrasonic Homogenization |
Sauces & Condiments
Pulp Integrity Protection:
| Technology | Benefit |
|---|---|
| Wide-Clearance Pump | Passes 5mm Solids Intact |
| Shear-Reduced Path | Prevents Cell Rupture |
Hot Fill Capability:
Honey & Syrups
| Component | Function |
|---|---|
| Crystallization Control | 45°C Path Heating |
| Oxidation Barrier | N? Headspace Purging (O?<0.3%) |
| Allergen Separation | Dedicated CIP Paths |
15" IIoT HMI with UniFill OS?
AI-Driven Features:
Clog Prevention AI:
| Risk Factor | Preventive Action |
|---|---|
| Viscosity Spike | Solvent Pulse Flush |
| Temp Drop >2°C | Path Preheating |
Quality Assurance:
| Parameter | Real-Time Monitoring |
|---|---|
| Brix Level | ±0.5° Brix |
| pH Value | ±0.05 pH Units |
| Particulate Count | >100μm Detection |
? EHEDG EL Class I (MF-1010) ? FDA 21 CFR 110/117 ? ATEX 2014/34/EU (MF-1030X) ? ISO 22000:2018 ? BRCGS AA+
Unilever Case Study:
*"After 6 months filling OMO detergent:
Output: 2,500 → 4,000 BPH (+60%)
Product Loss: 3.8% → 0.08%
CIP Time: 45 min → 18 min
ROI: 5 months"*
Precision Engineering:
? Universal Viscosity Handling: - 50-1,000,000 cP Range - Auto-Temp Compensation (±0.5 cP/°C) ? Foam Elimination Tech Stack: 1. Vacuum Degassing (-0.8 bar) 2. Laminar Flow Design (Re<2000) 3. Post-Fill Ultrasonic Cavitation ? Sanitary Architecture: | **Feature**| **Certification** | |----------------------|--------------------------| | Electropolished 316L | EHEDG EL Class I | | Drainable Slope| 3° (ASME BPE)| | CIP Efficiency | ATP<5 RLU Post-Clean |
