Introduction:In the heart of spicy culinary creations, where heat meets artistry, the Hot Sauce Bottling Equipment stands as a beacon of precision and innovation. This state-of-the-art machinery seaml

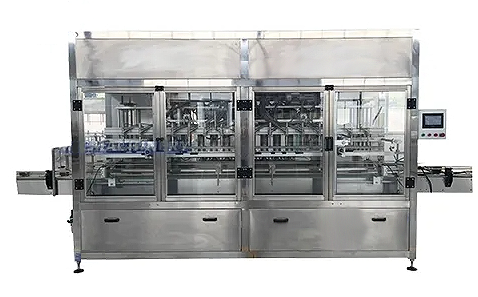

Hot Sauce & Viscous Liquid Bottling System
4000 BPH ? ±0.15% Accuracy ? 80°C Hot Fill ? 50% Solids Handling
| Parameter | BF-8100 (Standard) | BF-8200H (High-Pulp) | BF-8300X (ATEX) |
|---|---|---|---|
| Capacity | 100ml-1L (±0.15%) | 100ml-1L (±0.2%) | 100ml-1L (±0.18%) |
| Throughput | 4000 bottles/hour | 3800 bottles/hour | 3600 bottles/hour |
| Accuracy | ±0.15% gravimetric | ±0.2% | ±0.18% |
| Viscosity Range | 50-500,000 cP | 100-1,000,000 cP | 50-300,000 cP |
| Solids Handling | <30% Pulp/Seeds | <50% Chunks | <25% |
| Filling Technology | Servo Piston + Mass Flow | Progressive Cavity Pump | ATEX Diaphragm Pump |
| Heat Zone | 80°C Path Heating (±1°C) | 90°C (±0.5°C) | 75°C (±2°C) |
| Material Contact | 316L EP (Ra<0.4μm) | Hardox 500 + Ceramic Coating | Hastelloy C276 |
| Pulp Protection | Shear-Free Flow Path | Rotor-Stator Homogenizer | Laminar Screw |
| Cap Sealing | Steam Flush + Induction Seal | Same + Vacuum Assist | Torque Control (5-60 N·m) |
| Power | 480V/60Hz, 22kW | 480V/60Hz, 28kW | 24VDC Ex ia |
| Cleanability | CIP 20-min Cycle | CIP/SIP 25-min Cycle | Solvent Purge |
| Certifications | EHEDG EL Class I | FDA 21 CFR 175.300 | ATEX Zone 2 |
Performance Metrics:
| Product | Solid Size | Flow Rate | Accuracy |
|---|---|---|---|
| Habanero Sauce | 5mm Seeds | 1.5L/sec | ±0.18% |
| Chunky Salsa | 8mm Veg Chunks | 0.8L/sec | ±0.22% |
| Raw Honey | Crystallized | 1.2L/sec | ±0.15% |
| Technology | Function | Performance |
|---|---|---|
| Steam Jacketed Path | 80°C±1°C Temp Control | Kills 99.999% Pathogens |
| Flash Cooling | 4°C Water Curtain Post-Fill | Prevents Overcooking |
| Thermal Shock Test | -40°C to 120°C Cycling | Zero Glass Breakage |
Hot Sauce Production
| Feature | Specification |
|---|---|
| Capsaicin Control | Activated Carbon VOC Hood |
| Color Preservation | Amber Light Filtered Path |
| Sediment Prevention | Ultrasonic Agitation |
Edible Oils & Honey
Crystallization Management:
| Parameter | Solution |
|---|---|
| Honey Temp Control | 45°C Path Heating |
| Seed Crystal Removal | 100μm In-line Filter |
Oxidation Barrier:
Industrial Sauces
| Component | Function |
|---|---|
| Abrasion Resistance | Tungsten Carbide Nozzle (2200 Hv) |
| CIP Efficiency | 3D Rotating Spray Balls |
| Allergen Control | Dedicated Paths + ATP Monitoring |
12" HMI with SauceOS?
AI-Driven Features:
Burn Risk Prevention:
| Condition | Action |
|---|---|
| Temp >83°C | Auto Flow Speed Increase |
| Viscosity Spike >10% | Emergency Cool Down |
Quality Assurance:
| Metric | Real-Time Monitoring |
|---|---|
| Brix Level | ±0.5° Brix |
| pH Value | ±0.05 pH Units |
| Particulate Count | >500μm Detection |
? EHEDG EL Class I (BF-8100) ? FDA 21 CFR 113/114 ? ISO 22000:2018 ? ATEX 2014/34/EU (BF-8300X) ? BRCGS AA+
Tabasco? Louisiana Plant Report:
*"After 8 months using BF-8100:
Output: 2,500 → 4,000 BPH (+60%)
Sauce Waste: 4.2% → 0.15%
CIP Water Use: ↓70%
ROI: 6 months"*
Thermal & Mechanical Engineering:
? Pulp Handling Innovations: | **Technology**| **Benefit**| |-------------------------|-------------------------------| | Wide-Clearance Rotor| Passes 8mm Seeds/Chunks| | Low-Shear Flow Path | Preserves Cell Integrity| | Ultrasonic Agitation| Prevents Sedimentation| ? Hot Fill Precision: - Steam Jackets: 80°C±0.5°C - Flash Cooling: 90°C→40°C in 8s - Microbiological Safety: 5-log Reduction ? Universal Viscosity Coverage: - 50-1,000,000 cP Range - Auto-Temp Compensation (±0.5 cP/°C)
