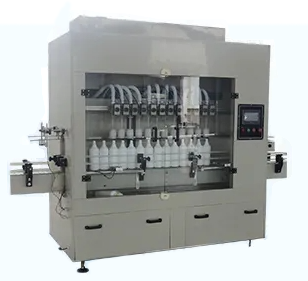

This filling machine is suitable for:pesticides, chemicals, bottled agent type liquid dispensing, bottle filling, Applicable to a variety of different types of containers.Such as pesticides, pesticide
Chemical Liquid Filling System for Hazardous Liquids
ATEX Zone 1 ? Corrosion-Proof ? ±0.05% Accuracy ? 30 Drums/Hour
| Parameter | CS-9100 (Standard) | CS-9200X (ATEX Zone 1) | CS-9300P (Pharma Grade) |
|---|---|---|---|
| Liquids Handled | Pesticides, Disinfectants, Alcohol (>95%), Acids, Solvents | Same + Peroxides | Same + Sterile Solutions |
| Capacity | 5-200L (±0.05%) | 5-200L (±0.08%) | 1-20L (±0.03%) |
| Throughput | 30 Drums/Hour | 28 Drums/Hour | 45 Containers/Hour |
| Accuracy | ±0.05% gravimetric | ±0.08% | ±0.03% |
| Explosion Protection | Pressurized Cabinets (+50Pa) | ATEX Cat.1 Zone 1 | Nitrogen Inerting (O?<0.1%) |
| Material Contact | Zirconium 702 | Hastelloy C276 | 316L EP (Ra<0.2μm) |
| VOC Control | >99.9% Carbon Adsorption | Thermal Oxidizer (99.99%) | Condensation + UV Oxidation |
| Static Control | <10? Ω + Ionized Air | <10? Ω (IECEx) | Conductive Flooring |
| Leakage Rate | <0.001 ml/min | <0.0005 ml/min | <0.0001 ml/min |
| CIP/SIP | 20-min Acid/Alkali Cycle | ATEX Washdown | 21 CFR Part 11 Validated |
| Power | 480V/60Hz, 12kW | 24VDC Ex ia | 480V/60Hz, 8.5kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 1 | FDA cGMP, USP <797> |
Certified Performance:
| Risk | Technology | Certification |
|---|---|---|
| Vapor Explosion | <10% LEL Detection (0.2s Response) | SIL-3 (IEC 61511) |
| Static Ignition | Surface Resistivity <10? Ω | NFPA 77/ IEC 60079-32 |
| Chemical Splash | Laser-Guided Nozzle Docking | ANSI/ISEA 105-2016 |
Pesticides & Herbicides
| Feature | Specification |
|---|---|
| Toxic Vapor Control | Scrubber Integration (99.95% efficiency) |
| Cross-Contamination | Dedicated Flow Paths |
| Corrosion Resistance | Zirconium Flow Path (HCl/Organophosphate Resistance) |
Disinfectants & Sterilants
GMP Compliance:
| Component | Certification |
|---|---|
| Cleanability | ATP <5 RLU (3-Step CIP) |
| Material Safety | USP Class VI |
Reactive Chemical Safety:
Medical Alcohol & Solvents
| Challenge | Solution |
|---|---|
| Flash Point Safety | -40°C Components |
| Evaporation Loss | Submerged Nozzle + Vapor Recovery |
| Static Accumulation | Ionized Air Curtain (10? ions/cm3) |
GravimetricMaster? System
| Innovation | Function | Performance |
|---|---|---|
| Coriolis Meter | 0.02% Accuracy (OIML R117) | ±0.05% Fill Accuracy |
| Auto-Density Compensation | Real-Time Temp/Viscosity Adjustment | ±0.01g/ml Accuracy |
| Dead Volume Elimination | Pulsed Purge System | Residual <0.005% |
? ATEX 2014/34/EU Cat.1 Zone 1 (CS-9200X) ? FDA 21 CFR 210/211 (CS-9300P) ? EPA Method 21 VOC Compliance ? ISO 80079-36:2016 ? SIL-3 (IEC 61508)
1. AGV Container Loading → 2. Grounding Verification (<10Ω) → 3. N? Purging (O?<0.5%) → 4. Submerged Filling (±0.05%) → 5. Vacuum Nozzle Retraction → 6. Torque-Sealing (5-100 N·m) → 7. Helium Leak Test (<10?? mbar·L/s) → 8. Vapor Scrubbing
Cycle Time: 2 min/drum
Syngenta Agrochemicals Report:
*"After 12 months filling chlorpyrifos (LD50=135mg/kg):
Operator Exposure: 0.8ppm → <0.001ppm
Product Loss: 2.3% → 0.04%
VOC Emissions: ↓99.98%
ROI: 7 months"*
Military-Grade Protection:
? Corrosion Defense: | **Chemical**| **Material Solution** | |---------------------|------------------------------| | Hypochlorite | Titanium Grade 12 | | Phenolic Compounds | Tantalum-Lined Path | | Ketone Solvents| Kalrez?6375 Seals | ? Explosion Prevention: - Zone 0 Sensors (0.1% LEL Detection) - 0.2s Emergency Shutdown - Positive Pressure Enclosures (+80Pa) ? Precision Engineering: - 0.02% Coriolis Accuracy - Auto-Bubble Compensation (Ultrasonic) - NIST-Traceable Calibration
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
