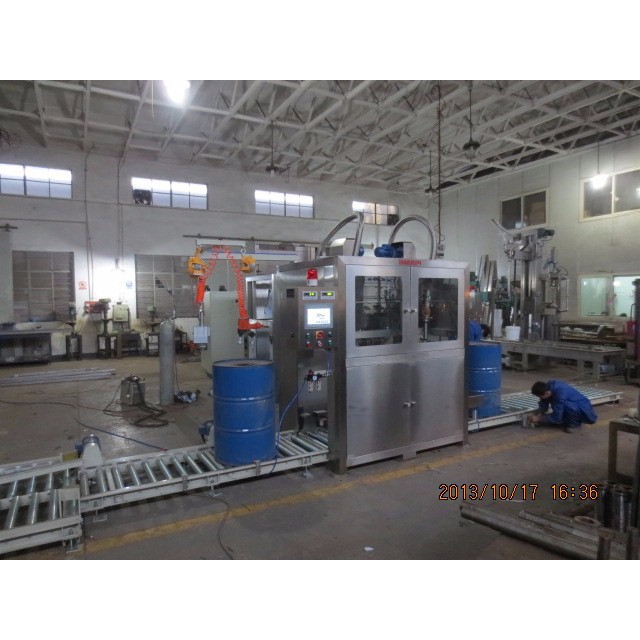

Full automatic 200L oil drum filling line

Full automatic 200L drum filling line (GFM-200) for liquids, viscous products. With SUS316 material, AIRTAC/SIEMENS configuration, 0.1% precision, vacuum system & customizable explosion-proof option.

Brand： GLZON

Model： GFM-200A

Full Automatic 200L Drum Filling Line - High Precision Oil Drum Liquid Filling Machine

Full automatic 200L drum filling line, professional oil drum liquid filling machine, is designed for efficient, precise and safe filling of various liquids, viscous products and even chunky materials. Widely applied in coating, printing ink, paint, asphalt, glue, lubricant, petrochemical and fine chemical industries, this filling line integrates advanced pneumatic, PLC control and weighing technology, realizing automatic operation from drum positioning to filling completion, greatly improving production efficiency, reducing manual labor and ensuring consistent filling quality.

As a core equipment in bulk liquid packaging, our full automatic 200L drum filling line solves the pain points of low efficiency, poor precision and high safety risks of traditional manual or semi-automatic filling. It adopts subsurface filling mode to avoid foam generation, matches with vacuum withdrawn system to prevent liquid dripping, and supports both net weight and gross weight filling, fully adapting to the diverse needs of different materials and production scenarios. Whether it is high-temperature, corrosive liquids or viscous, chunky products, the machine can complete filling stably and reliably.

Product Working Process

The full automatic 200L drum filling line adopts simple and efficient operation process, which can be mastered by operators quickly, without professional technical training, effectively reducing enterprise training costs and improving production efficiency:

The operator places the drum on the filling machine stably;
Align the filling nozzle with the drum mouth accurately;
First press the "filling orientation" button, then press the "start filling" button, the filling nozzle will lower automatically and start filling;
When the filling weight reaches the preset value, the machine will stop filling automatically and the nozzle will lift out of the drum;
The operator pushes the filled drum out to complete the whole filling process.

Core Features

Our oil drum liquid filling machine has outstanding performance and humanized design, with the following core advantages that are ahead of the industry:

Three-step filling mode: fast filling → slow down filling → precision filling, ensuring high filling precision while improving efficiency;
High-quality material selection: parts in contact with materials are made of SUS316, other parts are SUS304, and rolling conveyor is stainless steel, corrosion-resistant and durable;
Vacuum withdrawn system: effectively avoids liquid dripping after filling, keeps the working environment clean and ensures filling precision;
Dual weighing mode: supports net weight and gross weight filling, which can be adjusted according to customer needs;
High-quality configuration: AIRTAC pneumatic components + SIEMENS PLC + Toledo weighing instruments, stable performance and long service life;
Customizable options: optional explosion-proof system for hazardous working environments, and drum caper & closer for integrated packaging;
Wide applicability: suitable for various liquids, viscous and chunky products, matching different barrel types such as drums, pails and cans.

Technical Parameters (Model: GFM-200)

Technical Item	Detailed Specification
Suitable Material	Coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fine chemical, etc.
Filling Material	Liquids (high temperature, corrosive), viscous products, even chunky products
Filling Model	Subsurface filling
Filling Nozzles	1 (customized order welcome)
Weighing Form	Filling above level (liquid without foam); Filling under level (liquid with foam)
Filling Capacity	30kg, 60kg, 200kg (50-300KG adjustable)
Filling Precision	≤ 0.1% (30kg/200kg), 0.2% (60kg)
Filling Speed	180-240 barrels/hour (30kg); 120-180 barrels/hour (60kg); 45-60 barrels/hour (200kg) (1 drum/min for 300L)
Air Pressure	0.4-0.5MPa (gas power: 0.5MPa)
Barrel Form	Drum, pail, can, etc.
Work Environment	Temperature: -20℃～45℃; Relative humidity: 95% (no dew)
Voltage	AC220V, 50Hz
Max Power	1KW
Filling Mouth Material	SUS304/SUS316
Platform Size (mm)	350x350 (30kg/60kg); 700x700 (200kg)
Options	Stainless steel 304 conveyor roller, explosion-proof system, drum caper & closer

Our full automatic 200L drum filling line (Model: GFM-200) adheres to strict quality control standards, from raw material selection to finished product delivery, every link is inspected strictly to ensure the stability and reliability of the equipment. We also provide personalized customization services, according to the customer's specific filling materials, capacity requirements and working environment, to tailor the most suitable filling solution.

With professional R&D team, perfect after-sales service and rich industry experience, we are committed to providing high-quality filling equipment and intimate services for global customers, helping enterprises improve production efficiency, reduce costs and enhance market competitiveness.
