High-speed fully automatic 4-nozzle filling scale for 20-25L drums. Features proprietary Visida anti-drip technology, ±0.1% precision, and SUS316 construction. Fully automated conveying and filling for chemicals, oils, and food. Boost your output—Request a quote!

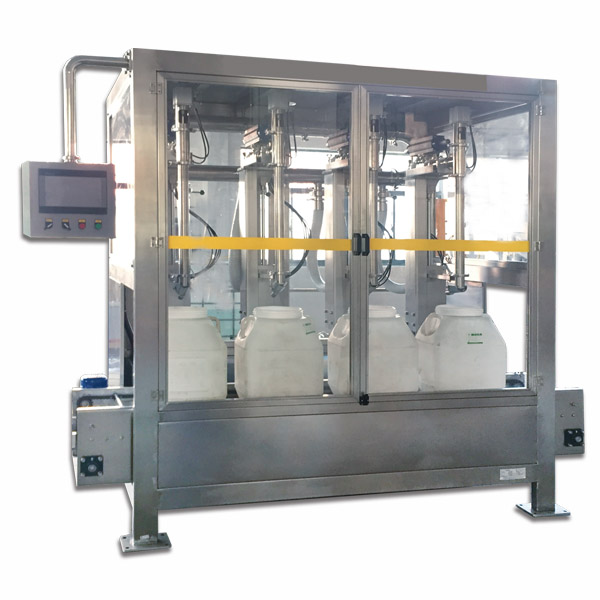

In high-volume chemical, oil, and food manufacturing, efficiency is the ultimate competitive advantage. Our 4-Nozzle Fully Automatic Liquid Quantitative Filling Scale is a state-of-the-art solution designed for non-foaming materials. Capable of reaching speeds up to 500 barrels per hour, this system delivers full-process automation—from empty drum conveying to the final output of filled 20-25L containers.
The heart of this system is the proprietary Visida filling head device. Unlike standard nozzles, this uniquely designed technology is engineered for high-flow surface filling while offering industry-leading anti-drip performance. By combining four-nozzle synchronous filling with an insertion-type design, we ensure that every drum is filled with surgical precision ($\le 0.1\%$ error) and zero splashing.
Massive Throughput: The four-head configuration delivers a filling speed of 400-500 barrels/hour, making it the ideal choice for large-batch production lines.
Net Weight Accuracy: Our system utilizes net weight filling to eliminate errors caused by tare weight variations or material density changes, ensuring a precision of $\le 0.1\%$.
Vapor & Splash Control: The insertion-type gun inserts deep into the drum during the fill, effectively avoiding material splashing on the container exterior.
Seamless Automation: From automatic positioning and taring to dual-speed filling and automatic output, this machine reduces manual labor to a single button press.
| Parameter Item | Technical Specification |
| Filling Speed | 400 - 500 barrels / hour |
| Max Weighing Capacity | $30\text{kg}$ |
| Filling Accuracy | $\le 0.1\%$ |
| Filling Range | $10 - 30\text{kg}$ |
| Drum Specifications | $20 - 25\text{L}$ ($\le \Phi 400 \times \text{h}500\text{mm}$) |
| Nozzle Material | SUS304 / SUS316 Stainless Steel |
| Control System | High-Stability PLC |
| Power Supply | AC220V / 50Hz |
| Air Supply | $0.5\text{Mpa}$ |
| Operating Temp | $-10^\circ\text{C}$ to $50^\circ\text{C}$ |
Our fully automatic system is designed for simple, error-free operation:
Initialization: The operator sets the target weight and presses the [Start] button.
Conveying: The empty drum conveyor automatically transports and positions the drums onto the weighing platform.
Filling Cycle: The Visida heads insert into the drums, perform an automatic tare, and initiate high-precision dual-speed filling.
Auto-Retraction: Once the target weight is reached, the nozzles lift, and the integrated anti-drip device activates to prevent residue contamination.
Output: The filled drums are automatically conveyed to the manual capping station for final tray placement.
Advanced Anti-Drip Design: The unique Visida device ensures that no residual liquid touches the container or the production floor, maintaining a clean environment.
Multi-Stage Filling Logic: Features a two-stage (or three-stage) automatic filling method to optimize speed without compromising the final weight accuracy.
Tool-Free Maintenance: Nozzles and tubing feature quick-connect fittings, allowing for rapid disassembly and cleaning—critical for food-grade and chemical-grade changeovers.
Industrial Stability: Based on a high-end PLC controller, the system is designed for $24/7$ continuous operation in harsh industrial conditions.
