Dedicated two-head explosion-proof filling machine for curing agents & hardeners. Features Ex d IIB T4 safety, $\le 0.1\%$ accuracy, and SUS304/316 construction. Optimized for 1-20kg packaging. Request a technical quote!

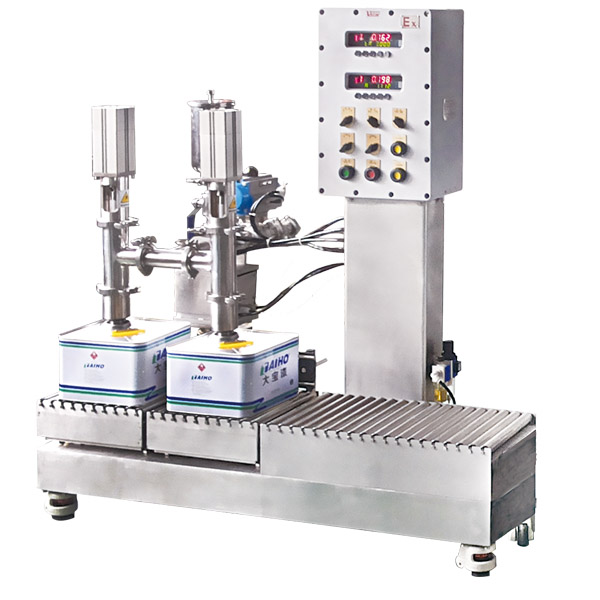

Precision is the most critical factor when packaging curing agents. Even a slight weight deviation can ruin the chemical proportions of the final coating or resin. Our Two-Head Special Filling Machine for Curing Agent is a dedicated industrial solution designed for the 1-20kg packaging range.
Equipped with a certified Ex d IIB T4 explosion-proof rating, this machine is engineered to handle flammable and volatile curing agents (hardeners) safely while doubling your production output through its dual-head configuration.
Curing agents are notoriously difficult to handle—they can be sticky, volatile, and reactive. Our Explosion-proof Quantitative Filling Equipment solves these challenges with a specialized fluid path and intelligent control system. Whether you are packaging epoxy, polyurethane, or acrylic curing agents, this system ensures a clean, safe, and highly accurate fill every time.
Dual-Head High Speed: Capable of filling 120-500 cans per hour, this system is designed for high-throughput environments where single-head machines create bottlenecks.
Ex d IIB T4 Safety: Specifically designed for hazardous zones where flammable vapors are present, ensuring total compliance with safety regulations.
±0.1% Filling Accuracy: Using a two-stage (Fast/Slow) filling mode, the machine eliminates proportioning errors that could lead to poor product quality for the end-user.
Tool-Free Quick Cleaning: The filling heads and pipelines feature quick-connectors, allowing for rapid disassembly and cleaning—essential for preventing curing agent buildup and cross-contamination.
| Parameter Item | Specification |
| Primary Keyword | Two-Head Curing Agent Filling Machine |
| Filling Range | 1 - 20kg |
| Filling Accuracy | $\le 0.1\%$ |
| Filling Speed | 120 - 500 cans / hour |
| Explosion-proof Rating | Ex d IIB T4 |
| Division Value | 5g / 10g |
| Applicable Containers | $\le \phi 250 \times \text{h}350$ mm |
| Power Supply | AC220V / 50Hz |
| Air Supply | 0.4 - 0.8 Mpa |
30-Formula Memory: Store up to 30 different profiles for various curing agent types, allowing for instant changeovers without re-calibration.
Intelligent Nozzle Protection: The system features "No-Barrel, No-Fill" logic. If a nozzle isn't correctly seated, it automatically lifts to prevent splashing and waste.
Dual Filling Modes: Switch between Net Weight and Gross Weight modes depending on your specific packaging requirements.
Self-Diagnosis & Alarms: The PLC controller monitors the system in real-time, providing automatic alerts for weight deviations or feeding pump issues.
Formula Selection: Operator selects the specific curing agent profile from the touch screen.
Alignment: Containers are manually positioned; the machine performs an automatic tare to zero the scale.
Dual Filling: Both heads descend and initiate the high-speed fill, transitioning to a slow-drip finish for precision.
Safety Lift: Nozzles lift automatically, and the anti-drip tray activates to prevent any curing agent from touching the container exterior.
