Double your efficiency with our Two-Head Submerged Filling Machine. Designed for foamy chemicals, food, and pharma raw materials. Features ±0.1% accuracy, SUS316 options, and 10-100kg capacity. Eliminate foam waste—request a quote!
In the production of chemical, food, and pharmaceutical products, "foaming" is one of the biggest obstacles to speed and accuracy.

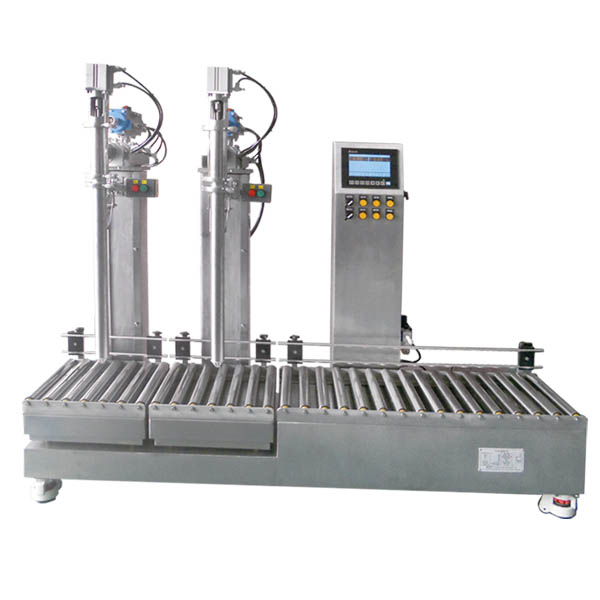

Traditional top-filling methods create surface turbulence, which leads to excessive bubbling and overflow. Our Two-Head Submerged Filling Machine inserts the nozzles to the bottom of the container before discharge. As the liquid level rises, the nozzles lift incrementally, keeping the outlet below the surface to prevent air entrapment and foam generation.
Dual-Head Efficiency: Two filling heads work in tandem to double your output compared to single-head systems, making it ideal for 10-100kg packaging requirements.
Quantitative Precision: Utilizing high-sensitivity load cells and PLC control, the system achieves extreme weight accuracy, even with high-viscosity or aerated materials.
Human-Machine Collaboration: Designed for ease of use, the machine handles the complex task of nozzle diving and tare removal, while the operator manages container positioning.
Broad Industry Versatility: From foamy resins and chemical reagents to edible oils and liquid medicines, this machine adapts to various fluid densities and container sizes.
| Feature | Technical Specification |
| Machine Type | Two-Head Submerged Filling Machine |
| Filling Range | $10\text{kg} - 100\text{kg}$ |
| Filling Heads | Dual (Two-Head) Submerged Type |
| Filling Error | $\pm 0.1\% - 0.2\%$ (based on material) |
| Application Industry | Chemical, Food, Pharmaceutical |
| Material Construction | SUS304 (Standard) / SUS316L (Sanitary) |
| Control System | PLC + Touch Screen HMI |
| Power Supply | AC220V / 50Hz |
| Air Source | $0.4 - 0.8\text{Mpa}$ |
| Anti-Foam Method | Bottom-up Submerged Discharge |
Our Two-Head Submerged Filling Machine follows a sophisticated automated logic to ensure safety and precision:
Alignment: Operator positions containers under the dual heads.
Diving & Tare: Upon pressing [Start], nozzles descend to the bottom of the barrels, and the system automatically removes the tare weight.
Submerged Filling: Material is discharged while the nozzles remain submerged, effectively suppressing foam.
Automatic Lift: Once the target weight is reached, the nozzles lift out cleanly, and an anti-drip tray catches any residual liquid.
Multi-Formula Memory: Store up to 30 different product profiles for instant switching between different foaming agents.
