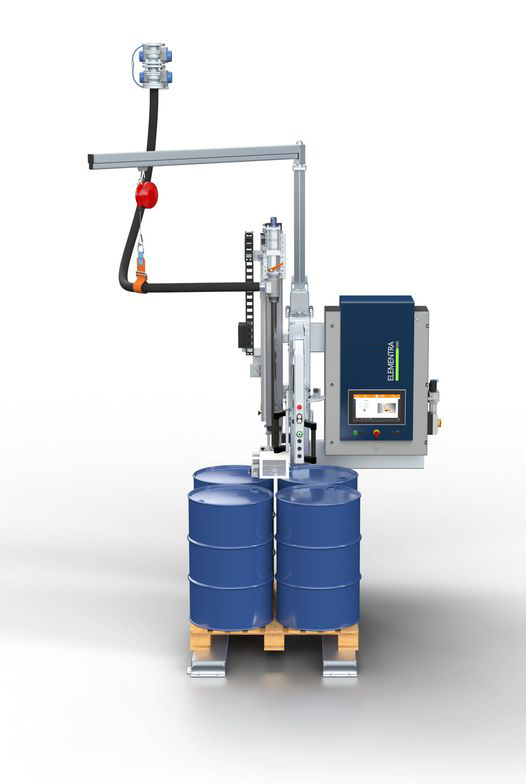

The "plug and fill" solution for your needs. The pallet filling station for the semi-automatic filling of containers and drums placed on pallets.With the pre-configured swivel pallet filling
Semi-Automatic Pallet Filling Station
Modular Design ? Ergonomic Efficiency ? Precision Load Optimization
| Parameter | PS-510 (Standard) | PS-520H (Heavy-Duty) | PS-530C (Cold Chain) |
|---|---|---|---|
| Pallet Capacity | 800-1,600kg | 1,000-2,500kg | 600-1,200kg |
| Throughput | 25 Pallets/Hour | 20 Pallets/Hour | 22 Pallets/Hour |
| Max Load Height | 1.8m | 2.2m | 1.6m |
| Positioning Accuracy | ±1mm (X/Y) ±0.5° (θ) | ±0.8mm ±0.3° | ±1.2mm ±0.6° |
| Work Height Adjustment | 650-1,100mm (Electric) | 600-1,400mm (Hydraulic) | 700-1,000mm (Pneumatic) |
| Material Handling | Boxes/Totes/Drums | IBCs/Barrels | Insulated Containers |
| Safety System | Laser Curtain + E-Stop | Zone Safety Scanner | ATEX Zone 22 Certified |
| Power | 220V/50Hz, 1.8kW | 380V/50Hz, 3.5kW | 24VDC, 1.2kW |
| Footprint (L×W) | 3.5m × 2.8m | 4.2m × 3.2m | 3.8m × 3.0m |
| Weight Capacity | 300kg/m2 | 500kg/m2 | 200kg/m2 |
| Feature | Technology | Benefit |
|---|---|---|
| Auto Height Detection | LiDAR + AI Vision | ±2mm layer height measurement |
| Load Stabilization | Electrostatic Film Dispenser | Prevents shifting during transport |
| Weight Distribution | Pressure Mapping Sensors | Optimizes center of gravity |
| Barcode Integration | 360° Scanner Tunnel | Real-time inventory logging |
Operator Workflow: 1. Place container → 2. Scan item → 3. Position Guidance (AR HUD) → 4. Auto-Layer Completion → 5. Film Application → 6. Pallet Release
Cycle Time: 2.4 min/pallet
E-Commerce Fulfillment
| Feature | Performance |
|---|---|
| Mixed-SKU Handling | 99.8% correct placement |
| Labeling Integration | Print-and-apply station |
| Dimension Capture | Volumetric scanning (±0.5%) |
Chemical Manufacturing
ATEX-compliant controls
Drum stabilizer arms
Spill containment tray
Food & Pharma
| Component | Certification |
|---|---|
| Work Surfaces | FDA UHMW-PE (Ra<0.8μm) |
| Air Quality | HEPA Filtration (ISO Class 7) |
| Washdown Rating | IP69K |
10" HMI with PalletOS?
Key Functions:
Pattern Library: 50+ preset configurations
Weight Balancing: AI center-of-gravity calculation
Error Prevention:
| Fault | Resolution |
|---|---|
| Overhang >5% | Auto repositioning |
| Unstable Base | Support column suggestion |
| Metric | Manual Palletizing | PS-510 | Improvement |
|---|---|---|---|
| Operator Fatigue | 8/10 (Borg Scale) | 2/10 | ↓75% |
| Damage Rate | 3.8% | 0.15% | ↓96% |
| Training Time | 16 hours | 45 minutes | ↓95% |
| Space Utilization | 82% | 94% | ↑15% |
? ISO 13849-1 PLd ? CE EN 60204-1 ? ANSI/RIA R15.06 ? ATEX Zone 22 (PS-530C) ? FDA 21 CFR 117
| Module | Function | Compatibility |
|---|---|---|
| Stretch Wrapper | Integrated film application | All models |
| Label Applicator | Thermal transfer printing | PS-510/PS-530C |
| Weigh Scale | In-line check weighing (±0.1%) | PS-520H |
| Cold Chain Kit | -20°C operation | PS-530C |
APPLICABLE BARREL TYPE
