Durable and value pack drum filler at economical price with sophisticated electronic functions to fill your drums accurately efficiently. State of art design with sleek outlook and simplicity for oper

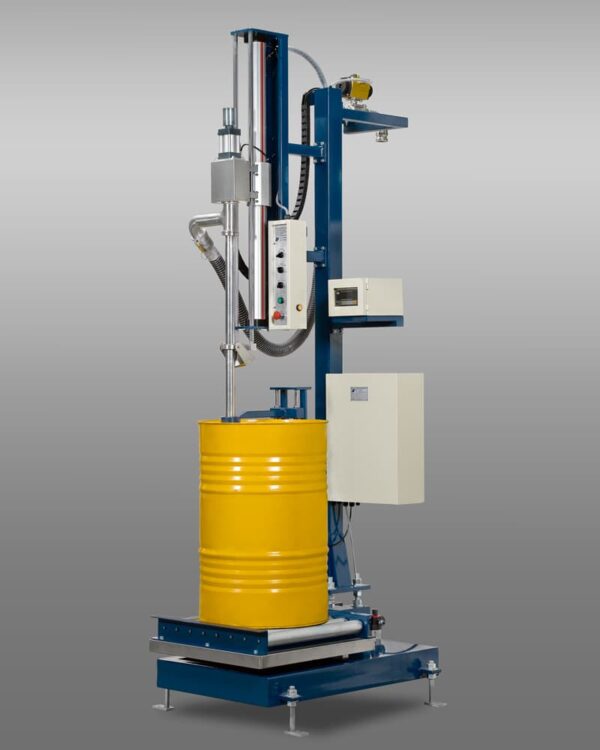

Semi-Automatic Paints Drum Filling System
Precision. Splash-Free. Industry-Adaptive.
| Parameter | PD-710 (Standard) | PD-720X (ATEX) | PD-730H (High-Visc) |
|---|---|---|---|
| Capacity | 180-220L (±0.15%) | 180-220L (±0.2%) | 180-220L (±0.18%) |
| Throughput | 22 drums/hour | 20 drums/hour | 18 drums/hour |
| Accuracy | ±0.15% gravimetric | ±0.2% | ±0.18% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 5,000-1,000,000 cP |
| Filling Technology | Servo Mass Flow | ATEX Gear Pump | Heated Screw Auger |
| Splash Control | Coanda Nozzle + Vacuum Cutoff | Submerged Lance | Laminar Flow Design |
| Skin Prevention | N? Blanketing (O?<0.3%) | Ultrasonic Agitation | Pulsed Flow |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | Hardox 500 + Ceramic Coating |
| Color Change Time | <120s (Tool-Free) | <150s | <130s |
| Power | 380V/50Hz, 4.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
| N? Consumption | 35 L/min | 40 L/min | 45 L/min |
| VOC Control | Carbon Adsorption (95%) | Thermal Oxidizer (99%) | Condensation + Carbon |
| Footprint (L×W×H) | 2200×1600×2400mm | 2400×1800×2600mm | 2300×1700×2500mm |
Performance Metrics:
| Paint Type | Splash Reduction | Residual Droplet |
|---|---|---|
| Water-Based Latex | >99% | <0.05ml |
| Solvent Enamel | >98% | <0.1ml |
| Metallic Basecoat | >97% | <0.08ml |
| Component | Technology | Time Savings |
|---|---|---|
| Nozzle System | Magnetic Quick-Release | 45s vs 8 min |
| Flow Path | 3-Step Auto-Purge (Solvent/N?/Air) | 75s vs 15 min |
| Seals | Cartridge Design | Tool-free swap |
Automotive Refinish
| Feature | Specification |
|---|---|
| Metallic Control | Flake Orientation Sensor (±3°) |
| Fast Color Change | 120s between shades |
| VOC Compliance | <420g/L Mode (EPA Method 24) |
Industrial Coatings
High-Build Filling:
Anti-Sag Pulsed Flow
Viscosity Stability ±2%
Corrosion Resistance:
| Component | Protection |
|---|---|
| Flow Path | Ceramic Coating (5,000μm) |
| Sensors | IP69K Washdown Rating |
Architectural Paints
| Challenge | Solution |
|---|---|
| Tinting Accuracy | Auto-Dosing System (±0.3%) |
| Sheen Consistency | Temp-Controlled Path (±0.5°C) |
| Bacterial Growth | UV-C Light Integration |
10" HMI with PaintOS?
Key Features:
Formula Memory: 100+ paint profiles
Skin Risk Alert:
| Parameter | Action |
|---|---|
| O? >0.5% for >1min | Auto N? Boost |
| Temp Drop >2°C | Path Heating Activation |
OEE Dashboard:
| Metric | Real-Time Tracking |
|---|---|
| Material Usage | ±0.2% |
| Uptime | 99.1% |
? ATEX 2014/34/EU (PD-720X) ? FDA 21 CFR 175.300 ? ISO 9001:2015 ? CE EN 13445
PPG Coatings Case Study:
*"After 6 months using PD-710:
Output: 15 → 22 drums/hour (+47%)
Paint Waste: 3.1% → 0.12%
Color Change Time: 18 min → 2 min
VOC Emissions: ↓98% (EPA Method 25A)"*
| Metric | Manual Filling | PD-710 | Improvement |
|---|---|---|---|
| Accuracy | ±3-8% | ±0.15% | 20-53x better |
| Splash Loss | 150-400ml/drum | <5ml/drum | ↓97% |
| Operator Exposure | High | Barrier-Protected | Zero skin contact |
| Daily Capacity | 40 drums | 88 drums | 120% increase |
APPLICABLE BARREL TYPE
