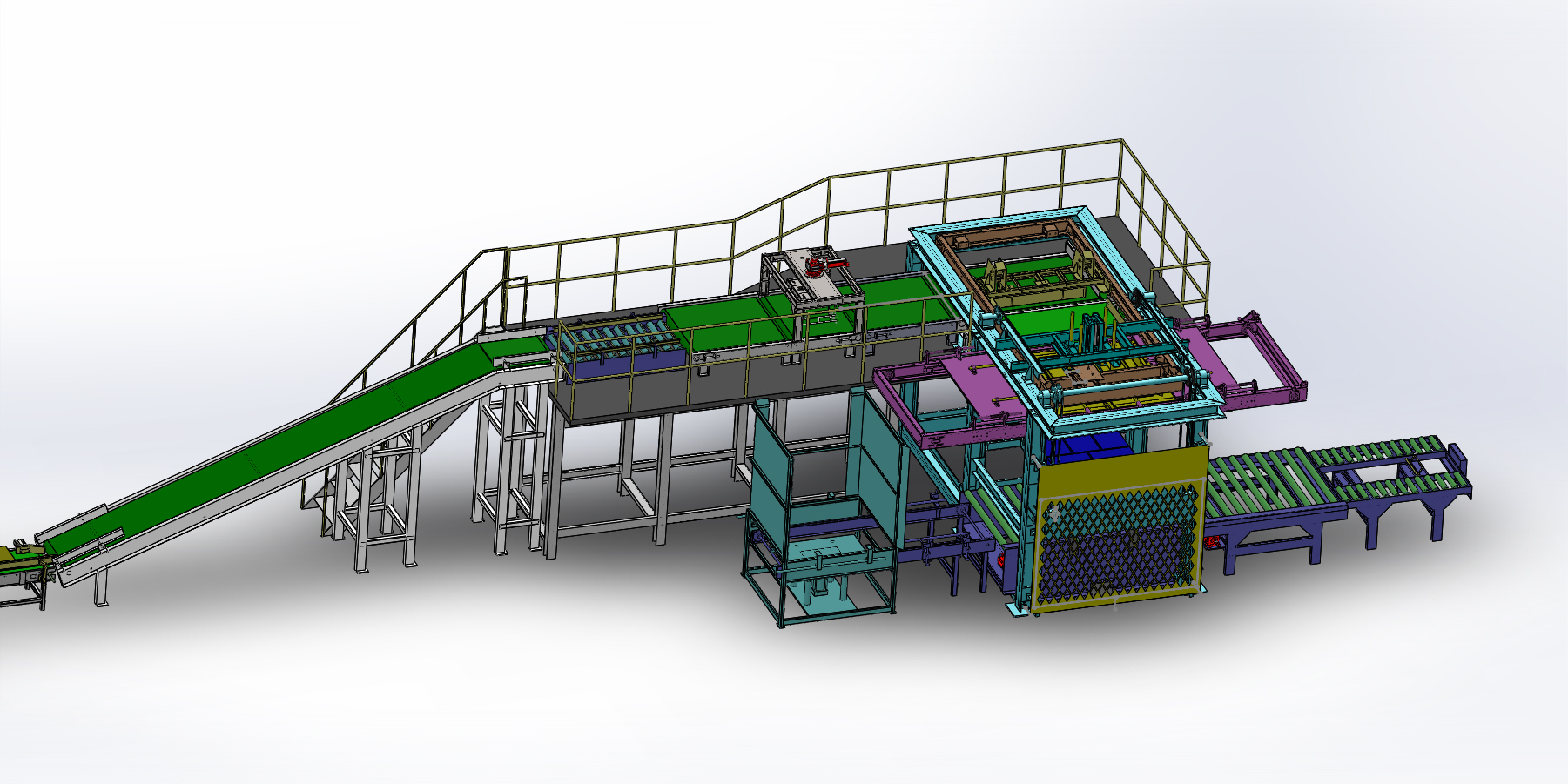

High-position palletizer is a kind of palletizing equipment, which has the characteristics of fast palletizing speed, relatively high stability, and easy maintenance and maintenance. It is mainly comp
| Parameter | Standard | Heavy-Duty | Test Standard |
|---|---|---|---|
| Max. Pallet Height | 6.5 m | 8.2 m | FEM 9.511 |
| Layer Capacity | 2,500 kg | 3,500 kg | ISO 10535 |
| Cycle Rate | 18 layers/min | 14 layers/min | ISO 9283 |
| Positioning Accuracy | ±0.5 mm | ±0.8 mm | VDI 2861 |
| Pallet Size | 800×600–1400×1200mm | ISO 6780 |
2.1 Robotic Manipulator
Structure: 4-axis gantry robot (Carbon fiber reinforced)
Reach: X=8m, Y=4m, Z=8.5m
Payload: 3,000 kg (dynamic)
Protection: IP67 (Washdown/Corrosive environments)
2.2 Intelligent Layer Handling
| Technology | Specification | Benefit |
|---|---|---|
| 3D Vision Guidance | ToF camera (0.1mm resolution) | Deformed package compensation |
| AI Pattern Generator | 50+ preset algorithms | 15% denser stacking |
| Force Control | ±5 Nm sensitivity | Fragile item protection |
2.3 Pallet Management
Automatic Pallet Dispenser: 40-pallet capacity
Pallet Inspection: Laser-based integrity scan
Transfer System: Motorized roller conveyor (1.5 m/s)
| Component | Specification | Compliance |
|---|---|---|
| Structural frame | S355JR steel (ISO 12944 C5-M) | FEM 1.001 Sec.8 |
| Drive system | Servo motors (IE5 efficiency) | IEC 60034-30-1 |
| Safety system | SIL 3/PLe (ISO 13849-1) | IEC 62061 |
| Energy consumption | 0.15 kWh/layer | ISO 50001 |
| Industry | Critical Adaptation | Certification |
|---|---|---|
| Beverage | Wet environment package handling | IP69K |
| Chemicals | ATEX Zone 2 compliance | IECEx Ex db |
| Building Materials | 3,500 kg cement layer handling | EN 15011 |
| Food | USDA-compliant materials | 21 CFR 177.2600 |
| Metric | GZ-HP3000 | Conventional Systems |
|---|---|---|
| Throughput (1.2m pallets) | 42 pallets/h | 28-32 pallets/h |
| Layer Accuracy | 99.6% | 94-97% |
| Downtime | <0.5% (24/7 ops) | 3-5% |
| Energy Savings | 35% vs. hydraulic | Baseline |
Collision Avoidance: 3D LiDAR scanners (IEC 61496 Type 4)
Seismic Stability: 8.0 Richter scale resistance (IBC 2021)
Global Certifications:
EU: CE, Machinery Directive 2006/42/EC
NA: ANSI/RIA R15.08, UL 1740
Asia: GOST-R, CCC
7.1 High-Bay Stabilization
Active Damping System:
Real-time vibration compensation
0.05° tilt correction at 8m height
Anti-Sway Control:
| Condition | Sway Reduction |
|---|---|
| 6m height | 92% |
| 8m height | 87% |
7.2 Smart Integration
WMS Connectivity: SAP EWM, Oracle WMS
Digital Twin Interface: Siemens Process Simulate
Predictive Maintenance:
| Component | Monitoring Parameter |
|---|---|
| Gearboxes | Oil particle count |
| Belts | Tension variance |
APPLICABLE BARREL TYPE
