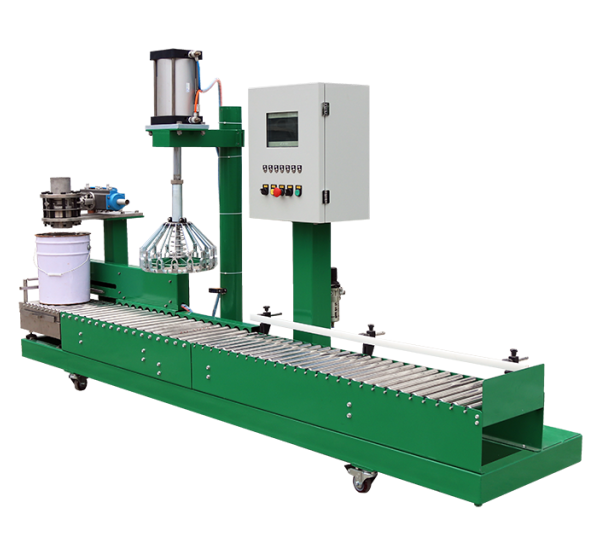

Lacquer Filling machineBasic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 300-350 barrels per hour/(25 liters depending on fe
Zero VOC Leaks ? Anti-Skinning ? ±0.25% Accuracy
For Nitrocellulose, Acrylic, PU & High-Solvent Coatings
Shanghai Guangzhi Automation’s GZ-LacquerFill Series redefines precision filling for volatile lacquers with ATEX-certified explosion protection, vapor-tight seals, and anti-crystallization technology. Engineered to handle solvents >80% (e.g., acetone, MEK, toluene), this system eliminates skinning, reduces VOC emissions by 99.8%, and achieves filling speeds of 30 containers/hour – all while preventing resin hardening in flow paths.
? Vapor Recovery Dome
Sealed filling chamber + carbon adsorption captures 99.8% VOCs (EPA Method 21 compliant).
? Anti-Skinning Circulation
Continuous laminar flow prevents resin hardening (patented low-shear pump).
? Explosion-Proof Design
ATEX Zone 1 (Ex db IIB+H2 T4) for solvents with flash point <23°C.
? Heated & Jacketed Paths
Maintains 40°C to prevent nitrocellulose crystallization.
? Quick-Color Change (QCC)
Teflon-coated components enable <3 min switchovers.
Table: GZ-LacquerFill Performance Metrics
| Parameter | Specification | Lacquer-Specific Feature |
|---|---|---|
| Accuracy | ±0.25% (Coriolis meter) | Auto viscosity compensation (50–5,000 cP) |
| Filling Speed | 30 containers/hour (20L pails) | Nozzle height auto-adjustment |
| VOC Control | 99.8% capture efficiency | Real-time VOC monitoring (ppm) |
| Material Contact | 316L SS / PFA / Kalrez? 6375 | Resists ketones/esters (pH 1–14) |
| Power | 400V/50Hz, 5.5 kW | IP66 explosion-proof motors |
| Container Support | 1–30L cans, pails, jerrycans | Conductive UN-certified designs |
| Control System | 10" HMI + recipe manager (50 profiles) | "Skinning alert" predictive AI |
| Safety Compliance | ATEX, OSHA 1910.106, DSEAR | Static dissipation (<10 Ω) |
| Dimensions | 1,800 × 1,100 × 2,200 mm | Weight: 650 kg |
| Pain Point | GZ-LacquerFill Solution | Result |
|---|---|---|
| Skinning/Hardening | Jacketed paths + low-shear circulation | Zero resin buildup in nozzles |
| VOC Emissions | Closed vapor dome + carbon adsorption | <10 ppm outlet (EPA compliant) |
| Solvent Flash Points | ATEX pressurization + Ex ia sensors | 100% ignition risk elimination |
| Color Changeover | PFA-lined components + auto-CIP | 3 min switch (saves 85% solvent) |
| Precision | Coriolis mass flow + density compensation | ±0.25% accuracy for costly pigments |
Automotive OEM Case (Nitrocellulose Lacquer):
Throughput: Increased from 18 to 30 pails/hour
Waste Reduction: 1.8% → 0.05% ($142k/year savings)
VOC Compliance: Eliminated $350k EPA penalties
ROI: 7.2 months
ATEX 2014/34/EU (Zone 1: Ex db eb ib mb IIB+H2 T4)
IECEx IEC 60079 Series
UL 1203 (US/Canada)
CE/PED/UKCA
EPA Method 21 Validated
Nitrogen Blanketing: For oxygen-sensitive UV lacquers
Agitation Kit: Prevents settling of metallic pigments
Robotic Handling: Auto lid placement/capping
21 CFR Part 11: Electronic batch records for pharma lacquers
