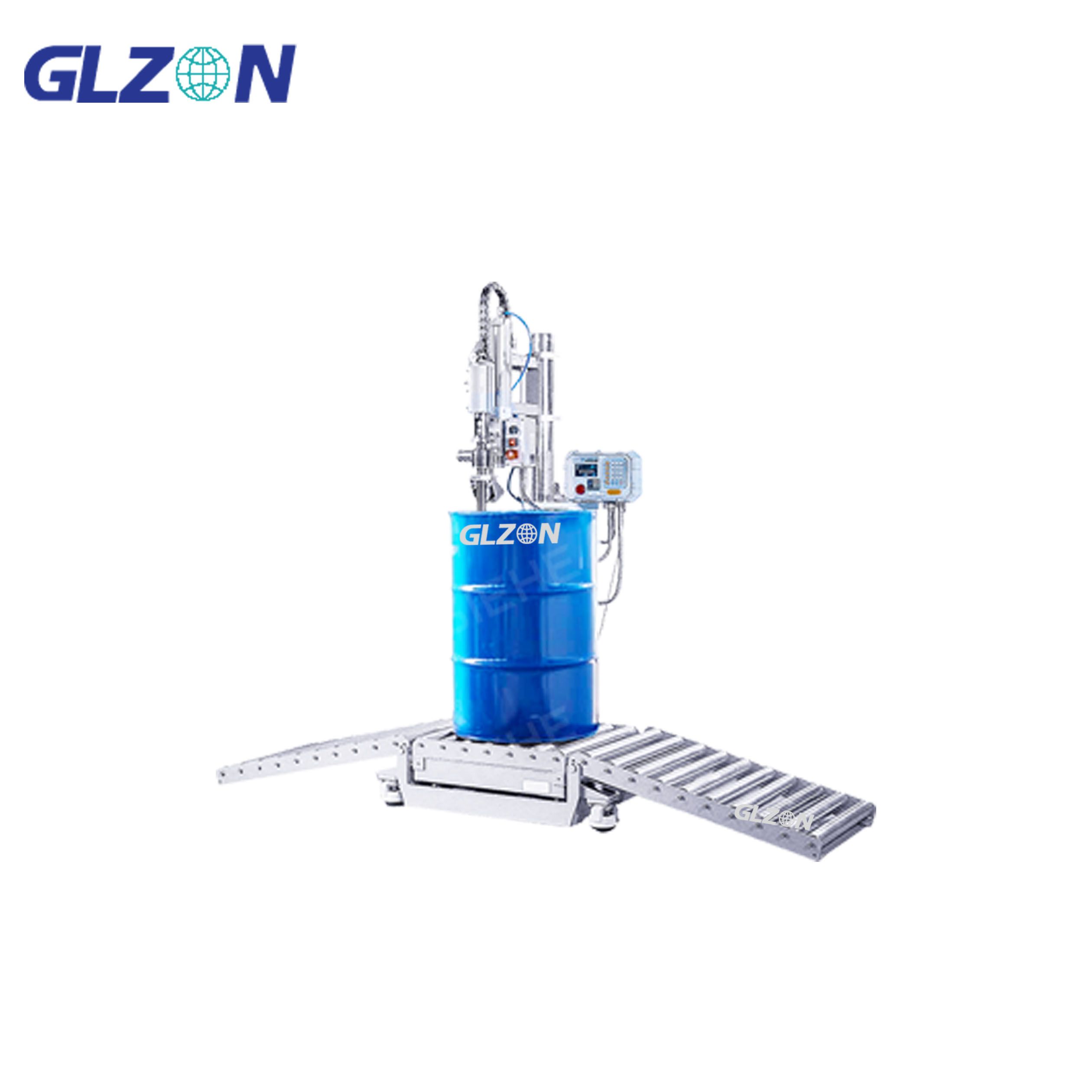

Coating Drum filler
Coating Drum fillerBasic parametersMaximum weighing capacity: 400kgMinimum sensitivity: 0.1kgFilling error: less than ± 0.1%Filling speed: approximately 40-60 barrels per hour (depending on feed flow
- Brand：
- Model：
Shanghai Guangzhi GC-C Series: Precision Coating Drum Filling Systems
Engineered for Paints, Resins, Solvents & High-Viscosity Coatings
Product Overview
Shanghai Guangzhi's GC-C Series Coating Drum Fillers deliver laboratory-grade accuracy (±0.25%) in industrial packaging environments. Designed specifically for challenging coating materials (viscosity up to 1,000,000 cP), these ATEX-certified systems eliminate crystallization, solvent evaporation, and cross-contamination during drum/IBC filling operations. Ideal for paint manufacturers, chemical plants, and adhesive producers seeking export-compliant solutions.
Core Technology Highlights
| Feature | GC-C Series Advantage | Industry Standard |
|---|---|---|
| Filling Principle | Gravimetric Weight-Based + Flowmeter Hybrid | Volumetric Only |
| Viscosity Handling | 1-1,000,000 cP (with heated path option) | <500,000 cP |
| Anti-Crystallization | Jacketed Stainless Steel Path + Nitrogen Purging | Unheated Path |
| Solvent Loss Control | Hermetic Sealing Nozzle + Vapor Recovery | Open Filling |
| Material Compatibility | 316L SS / PTFE / PFA Fluid Contact Parts | 304 SS / Rubber |
| Changeover Time | < 3 min (Quick-Clamp Pathway) | 15-30 min |
Technical Specifications
Table 1: Model Comparison for Coating Applications
| Parameter | GC-C50 (Semi-Auto) | GC-C200 (IBC Tote) | GC-C300 (Robotic) |
|---|---|---|---|
| Container Types | 20-60L Drums/Pails | 200-1000L IBCs | Drums + IBCs + Kegs |
| Throughput | 30 drums/hour | 18 totes/hour | 45 containers/hour |
| Accuracy | ±0.25% | ±0.3% | ±0.15% |
| Max Viscosity | 500,000 cP | 800,000 cP | 1,000,000 cP |
| Power | 220V/3.2kW | 380V/5.5kW | 380V/8.7kW |
| Footprint (L×W×H) | 1.5×1.2×2.1m | 2.4×1.8×3.3m | 3.6×2.1×3.6m |
| Export Certifications | CE, ATEX II 2G | CE, ATEX II 1G | CE, ATEX I/II, IECEx |
Specialized Coating Material Handling
*Table 2: Material-Specific Configurations*
| Coating Type | Recommended Features | Performance Gain |
|---|---|---|
| Epoxy Resins | Heated Path (50-80°C) + Dual-Component Mixer | Prevents curing during fill |
| Polyurethane Foams | Pressure-Vacuum Nozzle + Foam Suppression | 97% Foam Reduction |
| Solvent-Based Paints | Explosion-Proof Motor + Vapor Recovery | Meets VOC Regulations |
| High-Solid Coatings | Piston Pump + Pipe Heater (80°C) | Handles 950,000 cP |
| Waterborne Coatings | CIP System + 316L SS Full Path | Zero Cross-Contamination |
Export-Ready Advantages
markdown
1. **GLOBAL COMPLIANCE** - Certifications: CE, ATEX, IECEx, UKCA, GOST-R - IP66 Control Cabinets (Tropicalized Options) 2. **COST-SAVING INNOVATIONS** - 40% less coating waste vs. competitors - Energy Recovery System saves 22% power 3. **WORLDWIDE SUPPORT** - 24/7 Remote Diagnostics - Spare Parts Hubs: Germany/USA/UAE
Technical Support Package
| Service | Standard | Premium |
|---|---|---|
| Warranty | 2 years | 3 years + Wear Parts |
| Installation | Video Guide | On-Site Engineer (Global) |
| Calibration | Annual Recommendation | IoT Auto-Calibration |
| Training | 8-hr Online Course | 3-Day Factory Training |
| Spare Parts Delivery | 7-14 Days (FOB) | 72-Hr Emergency Air Ship |
Key Selling Points for International Buyer
Plug-and-Play Export Kits: Pre-installed voltage converters (110V-480V)
Containerization: Machines ship fully assembled in sea-rated crates
Multilingual HMI: English/Spanish/French/Russian/Arabic interfaces
ROI Calculator: Prove 8-14 month payback using our web tool
This structure highlights technical superiority in coating-specific challenges while emphasizing Shanghai Guangzhi's export capabilities through compliance data and global support infrastructure. The tables enable quick technical evaluation by procurement teams.
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
FAQs
Our in-house designers and engineers have produced countless great designs for customers from different industries
1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
