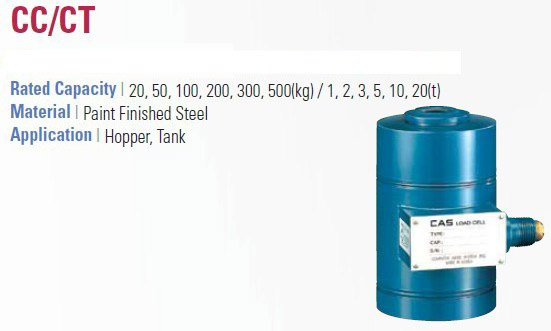

CAS CT Canister load cell (250kg-10tf)
CAS load cell, CT canister load cell models: CT-250L, CT-500L, CT-1, CT-2, CT-3, CT-5, CT-10.
⊙FEATURES
Tension load cell
Hermetically sealed
⊙OPTIONS
High accuracy grade
⊙Material
Paint finished steel
⊙Cable
Braided shield 4-wire round cable
with P.V.C-jacket
| Model | CT | ||
| Rated Capacity (kgf) | 250,500,1K,2K,3K,5K,10K | ||
| Accuracy Class | A | B | |
| Combined Error (% R.O) | ≤0.02 | ≤0.05 | |
| Creep for 30 min. (% R.O) | ≤0.03 | ≤0.03 | |
| Excitation | Recommended (V) | 10 | |
| Maximum (V) | 15 | ||
| Compensated Temerature Range(?C) | -10~+40 | ||
| Operating Temperature Range(?C) | -20~+80 | ||
| Material & Plate | Paint Finished Steel | ||

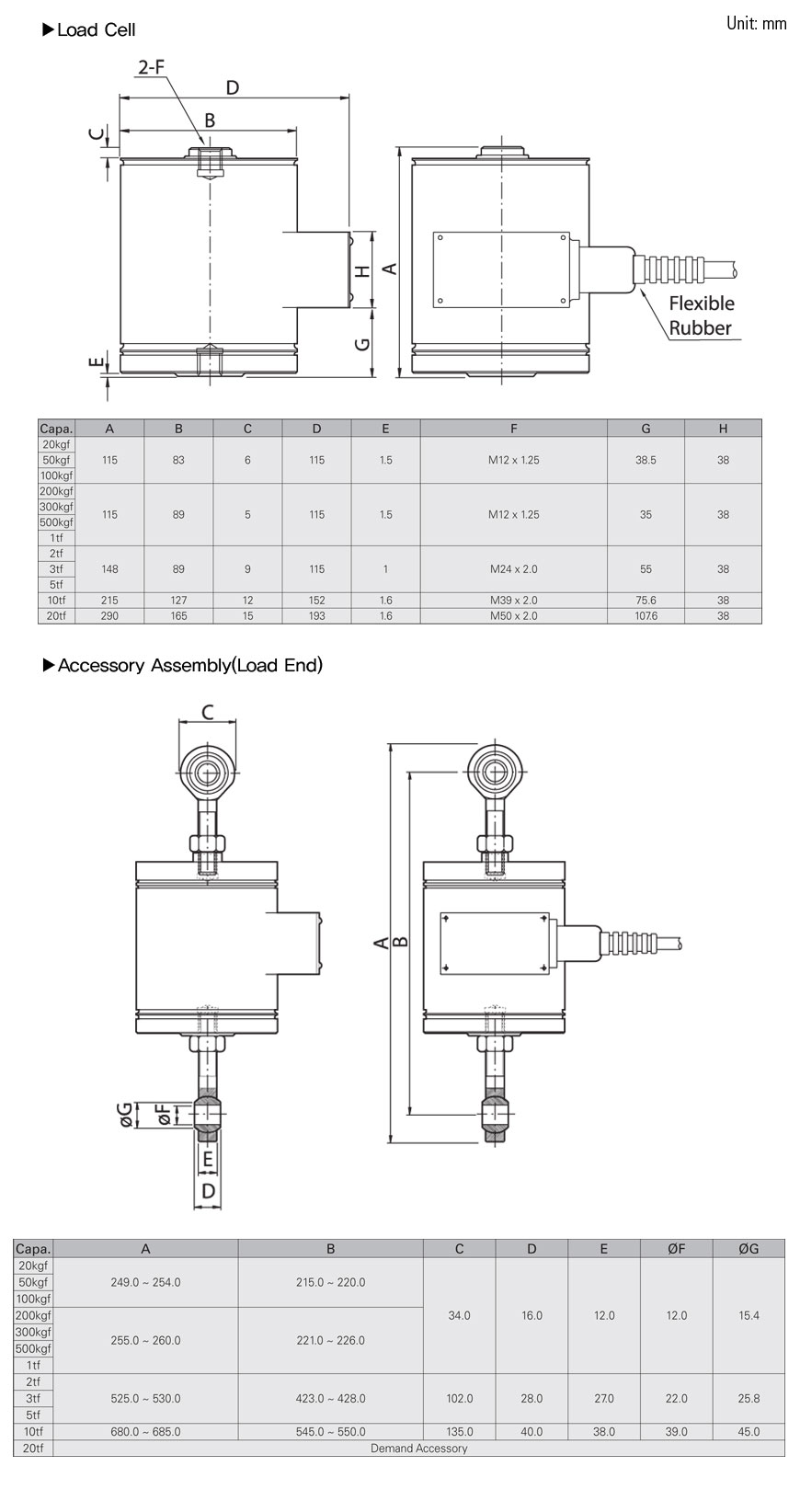

![CT[3].jpg](../upload/201704/1491810618899408.jpg "1491810618899408.jpg")
