MNC loadcells (50kg-20tf)

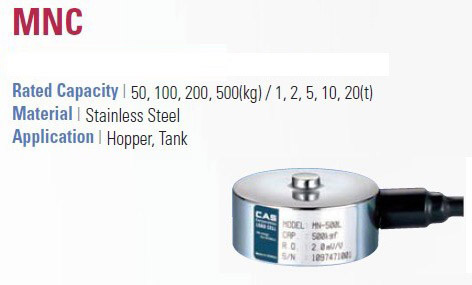

CAS load cell, MNC miniature cake load cell models: MNC-50L, MNC-100L, MNC-200L, MNC-500L, MNC-1, MNC-2, MNC-5, MNC-10, MNC-20.
⊙FEATURES
Miniature dimension
Compression application
Application for limited space
Protection class IP67
⊙Material
Stainless Steel
Paint finished steel(5tf - 20tf)
⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket
| Max. capacity | kgf | 50, 100, 200, 500 1tf, 2tf, 5tf, 10tf, 20tf |
| Rated output Zoro balance | mV/ V mV/ V | 2.0 ± 0.005 0 ± 0.06 |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.15 0.05 0.03 0.05 0.10 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 420 ± 30 350 ± 3.5 ＞2,000 |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -20 to +80 |

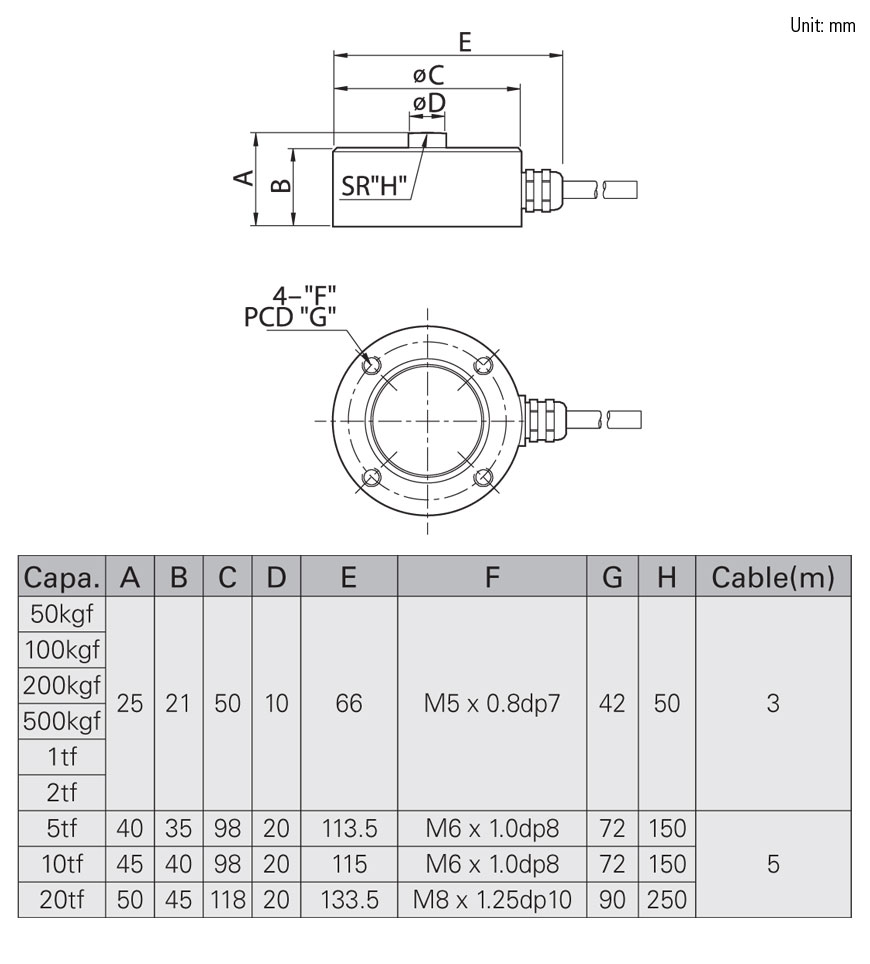

![MNC[10].jpg](../upload/201704/1491804357213475.jpg "1491804357213475.jpg")
