CAS DSB1 loadcells (10t-25tf)

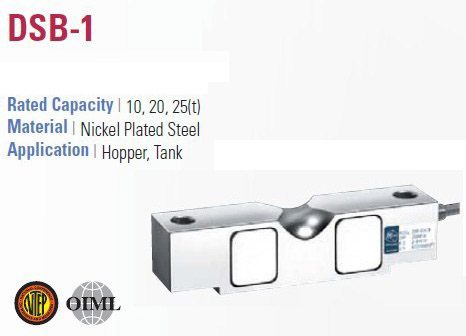

CAS load cell, DSB1 shear beam load cell models: DSB-10KLB, DBS-20KLB, DSB-25KLB
| Model | DSB-1 | ||
| Rated Capacity (kgf) | 10,20,25(klb) | ||
| Accuracy Class | D3 | BIO (IIIL10,000m) | |
| Combined Error (% R.O) | ≤0.05 | ≤0.03 | |
| Creep for 30 min. (% R.O) | ≤0.05 | ≤0.02 | |
| Excitation | Recommended (V) | 10 | |
| Maximum (V) | 15 | ||
| Compensated Temerature Range(?C) | -10~+40 | ||
| Operating Temperature Range(?C) | -20~+80 | ||
| Material & Plate | Nickel Plated Steel | ||
