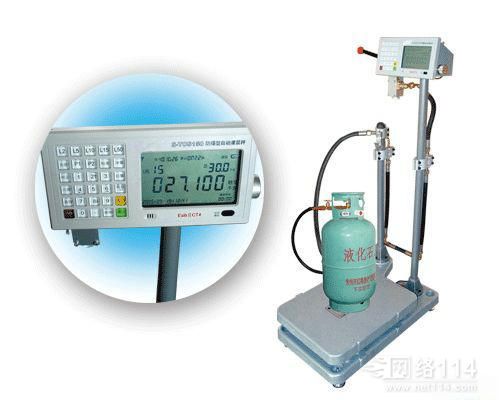

Professional gas filling device with EXiaBT4 safety rating. Features 150kg capacity, 8000 record storage, and ±100g accuracy. Ideal for LPG, Propane, and industrial gas
Our Industrial Gas Filling Device is a high-performance, automated solution designed for the safe and accurate filling of Liquefied Petroleum Gas (LPG) and other gas cylinders. Specifically engineered for hazardous environments, this device combines a heavy-duty EXiaBT4 explosion-proof rating with a precision weighing system, ensuring every cylinder is filled safely and to exact specifications.
Whether you are operating a small-scale refill station or a high-volume industrial gas plant, our filling device provides the reliability, data tracking, and safety features required to optimize your operations.
Ultimate Safety Compliance: Certified with an EXiaBT4 Explosion-proof rating, designed to operate safely in high-risk zones.
Dual Power Versatility: Equipped with a 2000mAh Lithium-ion rechargeable battery for wireless operation or standard AC220V power for continuous use.
Precision Weighing (Class III): Achieving a control accuracy of $\pm 100\text{g}$, this device minimizes gas loss and prevents the overfilling of containers.
Massive Data Storage: Built-in memory stores up to 8,000 filling records, providing essential traceability for production logs and inventory management.
Rugged Environmental Tolerance: Operational from $-20^\circ\text{C}$ to $50^\circ\text{C}$, making it suitable for both extreme outdoor and indoor conditions.
| Parameter Item | Technical Specification |
| Model | Professional Gas Filling Scale Series |
| Max Filling Capacity | $1 - 150\text{kg}$ |
| Accuracy Class | Class III |
| Control Accuracy | $\pm 0.10\text{kg}$ ($100\text{g}$) |
| Filling Speed | $40 - 60$ cans / hour |
| Explosion-Proof Class | EXiaBT4 |
| Max Operate Pressure | $7\text{Mpa}$ |
| Data Storage | $8000$ Filling Records |
| Primary Power | $2000\text{mAh}$ Lithium-ion Battery |
| Input Voltage | AC220V ($-15\% \sim 10\%$) |
| Power Consumption | $30\text{W}$ |
| Environment Limits | $-20^\circ\text{C} \sim 50^\circ\text{C}$; $\le 95\%$ Humidity |
The device features an intuitive interface that allows operators to set target weights quickly. The Class III Accuracy ensures that the scale remains reliable even under heavy, repeated daily use.
Unlike traditional corded scales, the 2000mAh Lithium-ion battery allows for flexible placement within the filling station without the need for complex wiring, all while maintaining the strict EX-proof safety standards.
Designed to handle an operating pressure of up to $7\text{Mpa}$, this device is perfect for the standard "can filling" process, ensuring a stable flow rate and preventing backpressure issues.
The ability to record 8,000 separate filling events is a game-changer for digital inventory. Managers can easily audit gas consumption, identify discrepancies, and maintain accurate sales records directly from the device.

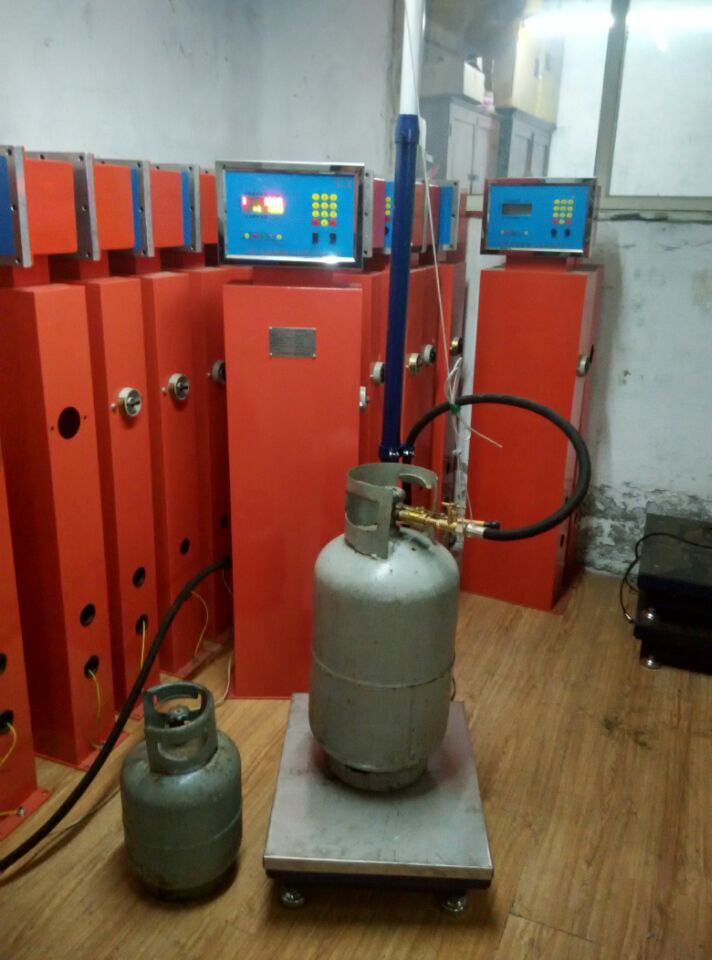

Placement: Place the empty cylinder on the scale platform.
Zero/Tare: The system automatically tares the cylinder weight to ensure net filling.
Filling Start: The operator initiates the gas flow; the device monitors the weight in real-time.
Automatic Cut-off: Once the target weight (up to 150kg) is reached, the system triggers the shut-off valve with $\pm 100\text{g}$ precision.
Record Logging: The data point (weight, date, time) is saved automatically to the internal memory.
