210L,220L Steel Drum Filling Line for Lubricant,Liquid,Water,Beer,Juice,OilBasic parameters· Maximum weighing capacity: 1200kg· Minimum sensitivity: 0.2kg· Filling range: 10-1000kg· Filling error: ±0.

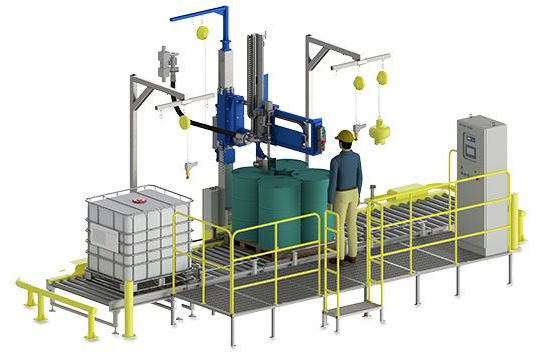

210L,220L Steel Drum Filling Line for Lubricant,Liquid,Water,Beer,Juice,Oil
Basic parameters
Maximum weighing capacity | 1200kg |
Minimum sensitivity | 0.2kg |
Filling range | 10-1000kg |
Filling error | ±0.2-0.3kg |
Nozzle material | SUS304 stainless steel (or tetrafluoroethylene) |
Applicable container | ≤Ф600xh1000mm |
Explosion-proof level | optional explosion-proof/non-explosion-proof |
Power supply | AC220/50Hz |
Air source | 0.4-0.8Mpa |
Operating temperature | -10℃-40℃ |
Control mode | 3-speed pneumatic control |
Filling method | plug-in, below the liquid surface |
Equipment features
· Instant display of weighing values, full touch screen Chinese operation.
· Optional matching host computer management software, rich network communication connections, and protocol selection accessories (CAN bus,
LonWorks bus, PROFIBUS bus, Ethernet, etc.) to facilitate factory data statistics management.
·5000 sets of formulas can be set and stored
·Two filling modes: net weight/gross weight
·Two operation modes: automatic/manual
·Three speeds for each nozzle: fast/heavy/slow
·Emergency stop/power off/tank removal triple protection
·Unique anti-drip device to prevent materials from dripping on the barrel
·The manual handle of the filling nozzle mechanism can be freely extended and rotated to the barrel forward and backward
·The filling nozzle adopts insert-type filling to avoid materials flying shallow on the barrel
·Four barrels can be placed on the pallet at the same time, and they can be filled one by one after manually aligning the barrel mouth, eliminating
the trouble of stacking pallets
·Simple operation: manual single nozzle to barrel-start filling-filling completed-automatic nozzle lifting---moving the filling nozzle for the next barrel cycle
Optional peripherals
1. Pump; 2. Filter; 3. Conveyor; 4. Reflux valve; 5. Capping machine; 6. Automatic filling line can be designed according to the user's site
Optional models
standard type, explosion-proof type, all stainless steel structure type.
