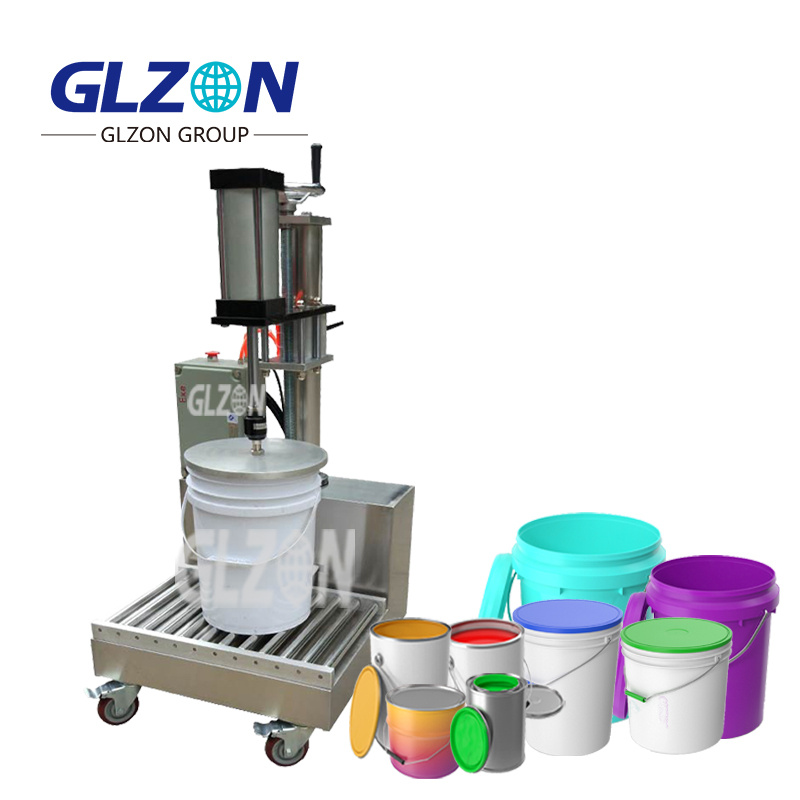

20L Gallon Pail Capping Line with Cap Press and Lid Sealer
Automated pail capping line: 60 pails/hour, ±3% torque accuracy. Dual-station sealing with leak testing. ATEX/FDA certified. Free ROI analysis!
- Brand： glzon
- Model： GZM_30L
PailSeal ProLine PS-500 Series
20L Gallon Pail Capping & Sealing Line
Dual-Station Precision. Zero Leaks. Industry 4.0 Ready.
Technical Specifications
Parameter | PS-510 (Standard) | PS-520X (ATEX) | PS-530F (Food Grade) |
|---|---|---|---|
Capacity | 5-30L Pails (±0.5mm) | Same | Same |
Throughput | 60 pails/hour | 55 pails/hour | 50 pails/hour |
Capping Stations | Dual-Station: Placement + Sealing | Same | Same |
Cap Compatibility | Screw Caps (38-152mm) | Same + Drum Lids | Tamper-Evident Seals |
Torque Range | 5-50 N·m (±3%) | 5-60 N·m (±4%) | 3-40 N·m (±2%) |
Seal Integrity | >0.8 bar (ISO 8317) | >1.0 bar | >0.9 bar (ASTM F2095) |
Material Contact | Powder-Coated Steel | 304 SS | 316L SS + FDA UHMW-PE |
Power | 380V/50Hz, 4.2kW | 24VDC Ex ia | 380V/50Hz, 3.8kW |
Air Consumption | 150 L/min @ 0.6MPa | 130 L/min | 140 L/min |
Changeover Time | <3 min (Tool-Free) | <4 min | <3 min |
Line Length | 6.5m | 7.0m | 6.8m |
Safety | Light Curtains + E-Stop | ATEX Zone 2 | IP69K Washdown |
Dual-Station Technology
Station 1: SmartCap? Placement System
Key Features:
Misalignment Detection: ±0.2mm accuracy
Cross-Thread Prevention: Auto-reverse + reposition
Cap Inventory: 200-cap magazine (auto-refill)
Station 2: TorqueMaster? Sealing Press
Control Mode | Application | Precision |
|---|---|---|
Constant Torque | General industrial | ±3% |
Angle Monitoring | Tamper-evident seals | ±0.5° |
Yield Control | Threaded metal caps | ±2% stretch |
Industry-Specific Solutions
Chemical Packaging
Feature | Specification |
|---|---|
Vapor Containment | Kalrez? gaskets (-40°C to 327°C) |
Static Control | Ionized air curtain (<10? Ω) |
ATEX Compliance | Zone 2 certification (PS-520X) |
Paints & Coatings
Anti-skinning N? purge during capping
Splash guards for high-gloss finishes
Color-coded cap recognition system
Food & Pharma
Component | Certification |
|---|---|
Contact Surfaces | EHEDG EL Class I |
Cleanability | 30-min CIP/SIP cycle |
Allergen Control | Dedicated cap magazines |
Smart Control Ecosystem
10" HMI with SealOS?
Data Intelligence:
OEE Dashboard:
Metric
Tracking
Uptime
99.2% (Industry Avg: 95%)
Reject Rate
<0.05%
Predictive Maintenance:
Component
Alert Threshold
Servo Motor
Temp >65°C
Gripper Wear
Vacuum < -0.8 bar
Certifications
? ATEX 2014/34/EU (Zone 2) ? FDA 21 CFR 177.2600 ? ISO 9001:2015 ? CE EN 415-7 ? ANSI/UL 2054 Child-Resistant
Line Configuration
1. Auto Pail Conveyor → 2. Cap Orientation Station → 3. Vision-Guided Placement → 4. Torque-Controlled Sealing → 5. Pressure Decay Test → 6. Reject Station → 7. Palletizing
Cycle Time: 1 minute/pail
Pricing & ROI
Model | Base Price | ROI Period | Key Differentiator |
|---|---|---|---|
PS-510 | $68,500 | 5 months | 60 pails/hour |
PS-520X | $92,000 | 7 months | ATEX Zone 2 |
PS-530F | $85,000 | 6 months | EHEDG Certified |
Cost Savings Analysis:
? Labor Reduction: - Manual: 3 operators → Automated: 0.5 FTE - Savings: $42,000/year ? Material Savings: - Cap damage reduction: $15,000/year - Leakage waste elimination: $28,000/year
