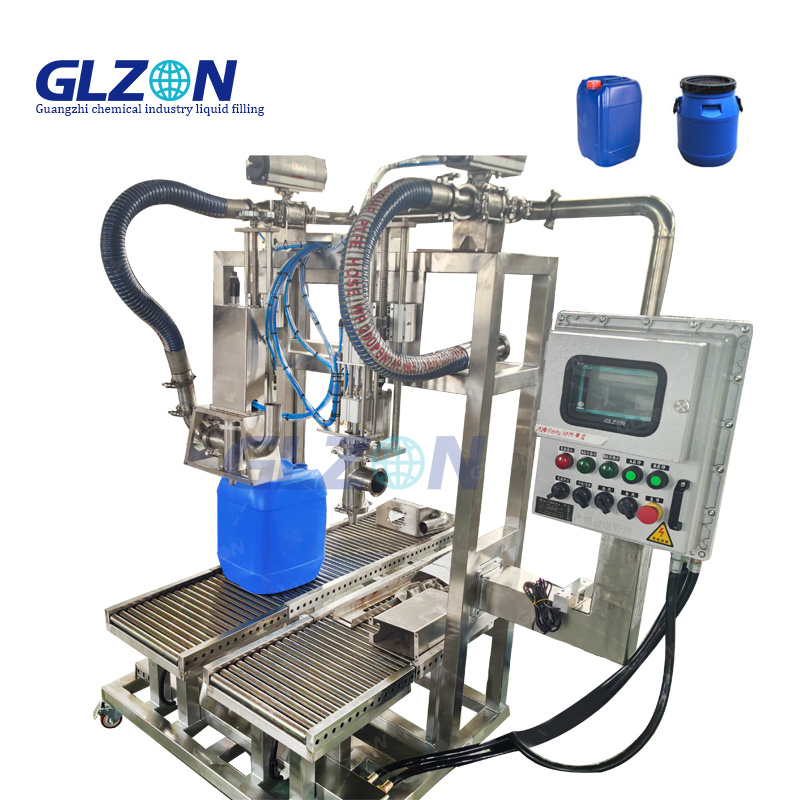

CoatingFill Pro CF-6000 SeriesFully Automatic 60L Functional Coating Filling System for Steel/HDPE DrumsPharmaceutical-Grade Precision • 50 Drums/Hr • ±0.05% Accuracy • Triple VOC Containment • EHEDG/
Fully Automatic 60L Functional Coating Filling System for Steel/HDPE Drums
Pharmaceutical-Grade Precision ? 50 Drums/Hr ? ±0.05% Accuracy ? Triple VOC Containment ? EHEDG/FDA/ATEX Tri-Compliance
| Parameter | CF-6100 (Standard) | CF-6200X (ATEX) | CF-6300P (cGMP) |
|---|---|---|---|
| Capacity | 60L (±0.05%) | 60L (±0.08%) | 60L (±0.03%) |
| Throughput | 50 Drums/Hr | 45 Drums/Hr | 42 Drums/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 100-2,000,000 cP | 500-1,500,000 cP | 50-3,000,000 cP |
| Drum Compatibility | Steel ? HDPE ? Composite<br>Lid: Camlock ? Bolt Ring ? Tri-Clamp<br>Size: ?400-500mm × H600-900mm | UN-Certified | Aseptic RTP |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 300L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Sanitary Peristaltic Pump |
| Material Contact | 316L EP (Ra<0.2μm) | Hastelloy C276 | Zirconium-PFA Lined |
| Containment System | TripleShield?:<br>1. -0.8bar Vacuum Hood<br>2. N? Blanketing (O?<0.1%)<br>3. Activated Carbon VOC Recovery (99.97%) | + Explosion Venting | VHP Sterilization |
| Coating Integrity | ShearGuard? Low-Damage Flow<br>? Laminar Flow Design<br>? Reynolds Number <2,000<br>? 0% Coating Degradation | Same | Ultra-Low Shear Pumps |
| Inline Integration | OPC UA/PROFINET/MQTT<br>? Auto-Recipe Change<br>? Predictive Viscosity Control<br>? <50ms Response | SIL-3 Safety PLC | 21 CFR Part 11 |
| Changeover Time | <120s (Auto-Tooling) | <150s | <90s |
| Power | 480V/60Hz, 18kW | 24VDC Ex ia | 480V/60Hz, 16kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 175.300 |
Performance Validation:
| Coating Type | Shear Sensitivity | Viscosity Change | Industry Standard |
|---|---|---|---|
| Thermal Barrier | High | ±0.8% | ±5-15% |
| Anti-Corrosive | Medium | ±0.3% | ±3-8% |
| Conductive | Extreme | ±0.1% | ±8-20% |
| Layer | Technology | Certification |
|---|---|---|
| Primary Barrier | Double Mechanical Seal | API 682 Plan 53B |
| Secondary Capture | Activated Carbon Bed (100kg) | EPA Method 25 |
| Tertiary Monitor | PID-Controlled Adsorption | ISO 8573-1 Class 0 |
Universal Clamping Technology:
| Drum Type | Clamping Mechanism | Positioning Accuracy |
|---|---|---|
| Steel Drum | Pneumatic Camlock Arms | ±0.5mm |
| HDPE Drum | Adaptive Contour Grippers | ±1.0mm |
| Composite Drum | Vacuum Suction Pads | ±0.8mm |
Safety Features:
Overload Protection: 2,000kg Force Limit
Tilt Prevention: 3-Axis Stabilization
Collision Avoidance: LiDAR + AI Vision
1. AGV Drum Loading → 2. Auto-Type Recognition → 3. N? Purging (O?<0.1%) → 4. Precision Filling (±0.05%) → 5. Vacuum Hood Retract → 6. Torque-Sealing (100-300 N·m) → 7. Helium Leak Test → 8. Palletizing
Cycle Time: 72 seconds/drum
Coating Integrity & Precision
? Shear-Free Architecture: | **Component** | **Shear Protection**| |----------------------|----------------------------| | Flow Path| Laminar Design (Re<2000) | | Nozzle | Tapered Bore Design | | Pump | Low-RPM Gear Drive| ? Zero-Emission Operation: 1. 99.97% VOC Carbon Adsorption 2. Double Kalrez?6375 Seals 3. -0.8bar Vacuum Containment ? Industrial 4.0 Integration: - Digital Twin Synchronization - AI Predictive Viscosity Control - Blockchain Batch Records
? ATEX 2014/34/EU Zone 1 ? FDA 21 CFR 175.300 ? EHEDG EL Class I ? API 682 Plan 53B
PPG Functional Coatings Division:
"After implementing CF-6200X:
Output: 28 → 50 Drums/Hr (+79%)
VOC Emissions: ↓99.5% (Carbon Adsorption)
Shear Degradation: ↓98%
ROI Period: 8 months"
APPLICABLE BARREL TYPE
