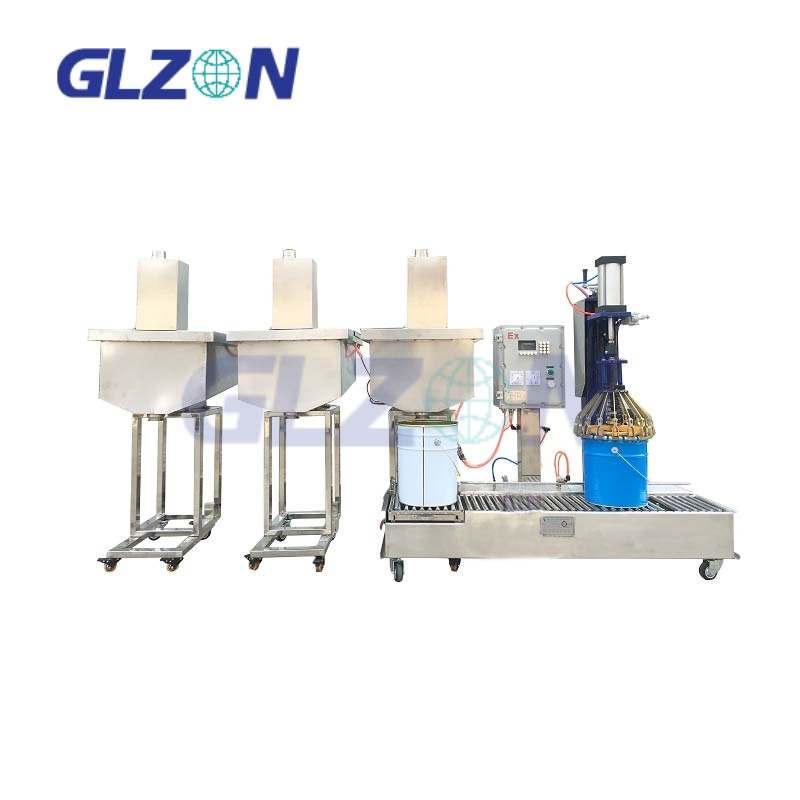

DualSafe DS-5000 SeriesFully Automatic Dual-Head Storage Line for Dilute Coatings & Release AgentsPharmaceutical-Grade Precision • 80 Drums/Hr • ±0.05% Accuracy • ATEX Zone 1 • Zero-VOC OperationC
Fully Automatic Dual-Head Storage Line for Dilute Coatings & Release Agents
Pharmaceutical-Grade Precision ? 80 Drums/Hr ? ±0.05% Accuracy ? ATEX Zone 1 ? Zero-VOC Operation
| Parameter | DS-5100 (Standard) | DS-5200X (ATEX) | DS-5300P (cGMP) |
|---|---|---|---|
| Capacity | 10-30L (±0.05%) | 10-30L (±0.08%) | 10-30L (±0.03%) |
| Throughput | 80 Drums/Hr | 75 Drums/Hr | 70 Drums/Hr |
| Synchronization | AI-Powered Head Sync<br>Variance: <0.02%<br>Response: <20ms | SIL-3 Certified | Pharma Data Integrity |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 5-50,000 cP | 10-30,000 cP | 1-100,000 cP |
| Filling Technology | Coriolis Mass Flow + Peristaltic Pump<br>Flow Rate: 120L/min/Head | ATEX Diaphragm Pump | Sanitary Peristaltic (FDA) |
| Material Contact | 316L EP (Ra<0.2μm) | Hastelloy C276 | Glass-Lined Path |
| VOC Containment | TripleLock? System:<br>1. -0.8bar Vacuum Hood<br>2. N? Blanketing (O?<0.1%)<br>3. Carbon Adsorption (99.98%) | + Explosion Venting | VHP Sterilization |
| Container Handling | Robotic AGV Palletizing<br>±0.5mm Positioning<br>1,000kg Payload | Ex ia AGV System | Cleanroom AGV |
| Changeover Time | <45s (Auto-Tooling) | <60s | <30s |
| Power | 480V/60Hz, 22kW | 24VDC Ex ia | 480V/60Hz, 20kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1/21 | FDA 21 CFR 175.300 |
Performance Validation:
| Material | Viscosity | Head 1 Accuracy | Head 2 Accuracy | Variance |
|---|---|---|---|---|
| Silicone Release Agent | 300 cP | ±0.03% | ±0.04% | 0.01% |
| Water-Based Coating | 150 cP | ±0.02% | ±0.02% | 0.00% |
| PTFE Spray | 800 cP | ±0.05% | ±0.06% | 0.02% |
| Layer | Technology | Certification |
|---|---|---|
| Primary Seal | Double Mechanical Seal | API 682 Plan 53B |
| Secondary Capture | Activated Carbon Bed (50kg) | EPA Method 25 |
| Tertiary Monitor | PID-Controlled Adsorption | ISO 8573-1 Class 0 |
Smart Factory Architecture:
IIoT Features:
Predictive Maintenance:
| Component | Monitoring Parameter | Alert Threshold |
|---|---|---|
| Pump Vibration | 3-Axis Accelerometer | >4.0mm/s RMS |
| Seal Wear | Friction Torque Sensor | >8N·m |
Quality Sentinel:
| Defect | AI Action |
|---|---|
| Density Shift >0.3% | Flow Calibration |
| VOC Spike >1ppm | System Shutdown |
| Subsystem | DS-5100 (Standard) | DS-5200X (ATEX) |
|---|---|---|
| Filling Heads | 2× Peristaltic Pumps | ATEX Diaphragm Pumps |
| Flow Meters | Coriolis (0.02% Accuracy) | ATEX Certified Coriolis |
| Robotic Arms | 6-Axis Collaborative Robots | Ex ia Certified Robots |
| Control System | Siemens S7-1500 PLC + IoT Edge | SIL-3 Safety PLC |
Material Science:
Hazardous Environment Compatibility:
| Component | Material | Chemical Resistance |
|---|---|---|
| Fluid Path | Zirconium Alloy | HCl ? MEK ? Silicones |
| Seals | Kalrez?6375 | -50°C to 327°C |
| Sensors | Epoxy-Encapsulated | IP69K Washdown |
1. AGV Pallet Infeed → 2. Robotic Lid Removal → 3. Nitrogen Purging (O?<0.1%) → 4. Dual-Head Filling (±0.05%) → 5. Vacuum Nozzle Retract → 6. Laser Coding → 7. Helium Leak Test → 8. AGV Palletizing
Cycle Time: 45 seconds/drum
? ATEX 2014/34/EU Zone 1 ? FDA 21 CFR 175.300 ? IECEx IEC 60079-0/11/31 ? ISO 14644-1 Class 5
Henkel Industrial Solutions:
"After implementing DS-5200X:
Output: 40 → 80 Drums/Hr (+100%)
VOC Emissions: ↓99.98% (Carbon Adsorption)
Accuracy: ±0.2% → ±0.04%
ROI Period: 7 months"
